CREATE YOUR OWN DIGITAL VIDEO CABLE

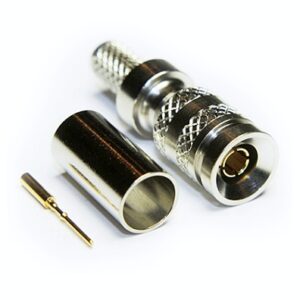

75Ω BNC connector for HD audio and video applications. It has excellent cable protection and shield and jacket crimping technology, which prevents the problem of exposed grounding on cable assemblies. Crimp size: 1.6mm pin (square), 5mm shield (hexagon). Suitable for cables up to 4.7mm external diameter

Technical characteristics

Electric
‣ Contact resistance: ≤ 3 mΩ (internal)
‣ Contact resistance: ≤ 2 mΩ (external)
‣ Dielectric strength: 1.5 kVdc
‣ Impedance: 75 Ω
‣ Insulation resistance: > 5 GΩ
‣Rated voltage: > 50V
‣VSWR: ≤1.050/>32 dB up to 1 GHz, ≤1.065/>30 dB up to 2 GHz, ≤1.100/>26 dB up to 3 Ghz

Mechanical
‣ External cable diameter: 4.7 mm
‣ Cable Retention: > 30 N (center)
‣ Crimp size: 5 Hex crimp (shielding) sec. MIL22520/5-43(B)
‣ Insertion force: <25 N
‣ Lifecycles: > 1000
‣ Max wire size:
‣ Closure size: bayonet
‣ Cable anchoring: Curling of the sock

Material
‣ Contacts: Brass (CuZn35Pb2), AuCo 0.2 µm (center contact)
‣ Inserts: PTFE
‣ Shell: Brass (CuZn39Pb3)
‣ Shell plating: Optalloy®

Environmental
‣ Temperature range: -30°C to +85°C
‣ Crimpability of contacts: Complies with IEC 60803 and IEC 60352-2 standards

75Ω BNC connector for HD audio and video applications. It has excellent cable protection and shield and jacket crimping technology, which prevents the problem of exposed grounding on cable assemblies. Crimp size: 1.6mm pin (square), 5mm shield (hexagon). Suitable for cables up to 4.7mm external diameter

Technical characteristics

Electric
‣ Contact resistance: ≤ 3 mΩ (internal)
‣ Contact resistance: ≤ 2 mΩ (external)
‣ Dielectric strength: 1.5 kVdc
‣ Impedance: 75 Ω
‣ Insulation resistance: > 5 GΩ
‣Rated voltage: > 50V
‣VSWR: ≤1.050/>32 dB up to 1 GHz, ≤1.065/>30 dB up to 2 GHz, ≤1.100/>26 dB up to 3 Ghz

Mechanical
‣ External cable diameter: 4.7 mm
‣ Cable Retention: > 30 N (center)
‣ Crimp size: 5 Hex crimp (shielding) sec. MIL22520/5-43(B)
‣ Insertion force: <25 N
‣ Lifecycles: > 1000
‣ Max wire size:
‣ Closure size: bayonet
‣ Cable anchoring: Curling of the sock

Material
‣ Contacts: Brass (CuZn35Pb2), AuCo 0.2 µm (center contact)
‣ Inserts: PTFE
‣ Shell: Brass (CuZn39Pb3)
‣ Shell plating: Optalloy®

Environmental
‣ Temperature range: -30°C to +85°C
‣ Crimpability of contacts: Complies with IEC 60803 and IEC 60352-2 standards

75Ω BNC connector for HD audio and video applications. It has excellent cable protection and shield and jacket crimping technology, which prevents the problem of exposed grounding on cable assemblies. Crimp size: 1.6mm pin (square), 7.36mm shield (hexagon). Suitable for cables up to 7.3mm outside diameter

Technical characteristics

Electric
‣ Contact resistance: ≤ 3 mΩ (internal)
‣ Contact resistance: ≤ 2 mΩ (external)
‣ Dielectric strength: 1.5 kVdc
‣ Impedance: 75 Ω
‣ Insulation resistance: > 5 GΩ
‣Rated voltage: > 50V
‣VSWR: ≤1.050/>32 dB up to 1 GHz, ≤1.065/>30 dB up to 2 GHz, ≤1.100/>26 dB up to 3 Ghz

Mechanical
‣ External cable diameter: 7.3 mm
‣ Cable Retention: > 30 N (center)
‣ Crimp size: 7.36 Hex crimp (shielding) sec. MIL22520/5-43(B)
‣ Crimp size (pin): 1.6 Square crimp (pin) acc. IEC 60803 (matrix designation 2)
‣ Insertion force: <25 N
‣ Lifecycles: > 1000
‣ Max wire size:
‣ Closure size: bayonet
‣ Cable anchoring: Curling of the sock

Material
‣ Contacts: Brass (CuZn35Pb2), AuCo 0.2 µm (center contact)
‣ Inserts: PTFE
‣ Shell: Brass (CuZn39Pb3)
‣ Shell plating: Optalloy®

Environmental
‣ Temperature range: -30°C to +85°C
‣ Crimpability of contacts: Complies with IEC 60803 and IEC 60352-2 standards

75 ohm straight crimp BNC connector, for applications up to 3 GHz.

Technical characteristics

Electric
‣ Impedance: 75 Ohm
‣ Frequency range: Up to 4.5 GHz
‣ Dielectric withstand voltage: 1500 Veff
‣ Insulation resistance: 5000 M-Ohm
‣Return loss: -12 dB at 6 GHz

Mechanical
‣ External Ø of the cable: max 4.6 mm
‣ Ø of the central conducting wire: max 0.65 mm
‣ Design standard: CEI 61169-8
‣ RoHS3 compliant: Yes
‣ Center contact termination: Crimp
‣ External contact termination: Crimp
‣ Mating cycles: 500
‣ Contact retention: 10 N min
‣ Cable retention: 100 N min
‣ Mating force: 13.6 N maximum
‣ Decoupling force: 13.6 N maximum

Material
‣ Center contacts: Ottone
‣ External contacts: Brass
‣ Insulation: PTFE
‣ Bayonet cap: Zinc
‣ Center contact plating: Gold
‣ External contact plating: Nickel

Environmental
‣ Operating temperature: -55 to +155 degrees C
‣ IP protection rating (paired): IP64

75 ohm straight crimp BNC connector, for applications up to 3 GHz.

Technical characteristics

Electric
‣ Impedance: 75 Ohm
‣ Frequency range: Up to 4.5 GHz
‣ Dielectric withstand voltage: 1500 Veff
‣ Insulation resistance: 5000 M-Ohm
‣Return loss: -12 dB at 6 GHz

Mechanical
‣ External Ø of the cable: max 4.6 mm
‣ Ø of the central conducting wire: max 0.65 mm
‣ Design standard: CEI 61169-8
‣ RoHS3 compliant: Yes
‣ Center contact termination: Crimp
‣ External contact termination: Crimp
‣ Mating cycles: 500
‣ Contact retention: 10 N min
‣ Cable retention: 100 N min
‣ Mating force: 13.6 N maximum
‣ Decoupling force: 13.6 N maximum

Material
‣ Center contacts: Ottone
‣ External contacts: Brass
‣ Insulation: PTFE
‣ Bayonet cap: Zinc
‣ Center contact plating: Gold
‣ External contact plating: Nickel

Environmental
‣ Operating temperature: -55 to +155 degrees C
‣ IP protection rating (paired): IP64

75 ohm BNC crimp connector, for applications up to 3 GHz.

Technical characteristics

Electric
‣ Impedance: 75 Ohm
‣ Frequency range: Up to 4.5 GHz
‣ Dielectric withstand voltage: 1500 Veff
‣ Insulation resistance: 5000 M-Ohm
‣Return loss: -12 dB at 6 GHz

Mechanical
‣ External Ø of the cable: max 4.8 mm
‣ Ø of the central conducting wire: max 1.1 mm
‣ Design standard: CEI 61169-8
‣ RoHS3 compliant: Yes
‣ Center contact termination: Crimp
‣ External contact termination: Crimp
‣ Mating cycles: 500
‣ Contact retention: 10 N min
‣ Cable retention: 150 N min
‣ Mating force: 13.6 N maximum
‣ Decoupling force: 13.6 N maximum

Material
‣ Center contacts: Ottone
‣ External contacts: Brass
‣ Insulation: PTFE
‣ Bayonet cap: Zinc
‣ Center contact plating: Gold
‣ External contact plating: Nickel

Environmental
‣ Operating temperature: -55 to +155 degrees C
‣ IP protection rating (paired): IP64

75Ω BNC connector for UHD video applications (4K and 8K). It has excellent cable protection and shield and jacket crimping technology, which prevents the problem of exposed grounding on cable assemblies. Crimp size: 1.07mm pin (square), 7.36mm shield (hexagon). Suitable for cables up to 7.3mm outside diameter

Technical characteristics

Electric
‣ Contact resistance: ≤ 3 mΩ (internal)
‣ Contact resistance: ≤ 2 mΩ (external)
‣ Dielectric strength: 1.5 kVdc
‣ Impedance: 75 Ω
‣ Insulation resistance: > 5 GΩ
‣Rated voltage: > 50V
‣VSWR: ≤1.050/>32 dB up to 1 GHz, ≤1.065/>30 dB up to 2 GHz, ≤1.100/>26 dB up to 3 Ghz

Mechanical
‣ External cable diameter: 7.3 mm
‣ Cable Retention: > 30 N (center)
‣ Crimp size: 7.36 Hex crimp (shielding) sec. MIL22520/5-43(B)
‣ Crimp size (pin): 1.07 Crimp
‣ Insertion force: <25 N
‣ Lifecycles: > 1000
‣ Max wire size:
‣ Closure size: bayonet
‣ Cable anchoring: Curling of the sock

Material
‣ Contacts: Brass (CuZn35Pb2), AuCo 0.2 µm (center contact)
‣ Inserts: PTFE
‣ Shell plating: Antraloy®
‣ Inserts: PP

Environmental
‣ Temperature range: -30°C to +85°C
‣ Crimpability of contacts: Complies with IEC 60803 and IEC 60352-2 standards

75Ω BNC connector for UHD video applications (4K and 8K). It has excellent cable protection and shield and jacket crimping technology, which prevents the problem of exposed grounding on cable assemblies. Crimp size: 1.07mm pin (square), 7.36mm shield (hexagon). Suitable for cables up to 7.3mm outside diameter

Technical characteristics

Electric
‣ Contact resistance: ≤ 3 mΩ (internal)
‣ Contact resistance: ≤ 2 mΩ (external)
‣ Dielectric strength: 1.5 kVdc
‣ Impedance: 75 Ω
‣ Insulation resistance: > 5 GΩ
‣Rated voltage: > 50V
‣VSWR: ≤1.050/>32 dB up to 1 GHz, ≤1.065/>30 dB up to 2 GHz, ≤1.100/>26 dB up to 3 Ghz

Mechanical
‣ External cable diameter: 7.3 mm
‣ Cable Retention: > 30 N (center)
‣ Crimp size: 7.36 Hex crimp (shielding) sec. MIL22520/5-43(B)
‣ Crimp size (pin): 1.07 Crimp
‣ Insertion force: <25 N
‣ Lifecycles: > 1000
‣ Max wire size:
‣ Closure size: bayonet
‣ Cable anchoring: Curling of the sock

Material
‣ Contacts: Brass (CuZn35Pb2), AuCo 0.2 µm (center contact)
‣ Inserts: PTFE
‣ Shell plating: Antraloy®
‣ Inserts: PP

Environmental
‣ Temperature range: -30°C to +85°C
‣ Crimpability of contacts: Complies with IEC 60803 and IEC 60352-2 standards

75Ω BNC connector for UHD video applications (4K and 8K). It has excellent cable protection and shield and jacket crimping technology, which prevents the problem of exposed grounding on cable assemblies. Crimp size: 1.07mm pin (square), 7.36mm shield (hexagon). Suitable for cables up to 4.7mm external diameter

Technical characteristics

Electric
‣ Contact resistance: ≤ 3 mΩ (internal)
‣ Contact resistance: ≤ 2 mΩ (external)
‣ Dielectric strength: 1.5 kVdc
‣ Impedance: 75 Ω
‣ Insulation resistance: > 5 GΩ
‣Rated voltage: > 50V
‣VSWR: ≤1.050/>32 dB up to 1 GHz, ≤1.065/>30 dB up to 2 GHz, ≤1.100/>26 dB up to 3 Ghz

Mechanical
‣ External cable diameter: 6.3 mm
‣ Cable Retention: > 30 N (center)
‣ Crimp size: 6.47 Hex crimp (shielding) sec. MIL22520/5-43(B)
‣ Crimp size (pin): 1.07 Square crimp (pin) acc. IEC 60803 (matrix designation 2)
‣ Insertion force: <25 N
‣ Lifecycles: > 1000
‣ Max wire size:
‣ Closure size: bayonet
‣ Cable anchoring: Curling of the sock

Material
‣ Contacts: Brass (CuZn35Pb2), AuCo 0.2 µm (center contact)
‣ Inserts: PTFE
‣ Shell plating: Antraloy®
‣ Inserts: PP

Environmental
‣ Temperature range: -30°C to +85°C
‣ Crimpability of contacts: Complies with IEC 60803 and IEC 60352-2 standards

High performance 75Ω BNC connector to meet the requirements of SMPTE ST 2081-1 and ST 2082-1 for use in 6G and 12G systems.

Technical characteristics

Electric
‣ Impedance: 75 Ohm
‣ Frequency range: Up to 18 GHz
‣ Dielectric withstand voltage: 1500 Veff
‣ Insulation resistance: 5000 M-Ohm
‣Return loss: -35dB at 12GHz

Mechanical
‣ External Ø of the cable: max 7.1 mm
‣ Ø of the central conducting wire: max 1.1 mm
‣ Design standard: CEI 61169-8
‣ RoHS3 compliant: Yes
‣ Center contact termination: Crimp
‣ External contact termination: Crimp
‣ Mating cycles: 500
‣ Contact retention: 10 N min
‣ Cable retention: 150 N min
‣ Mating force: 13.6 N maximum
‣ Decoupling force: 13.6 N maximum

Material
‣ Center contacts: Ottone
‣ External contacts: Brass
‣ Insulation: PTFE
‣ Bayonet cap: Zinc
‣ Center contact plating: Gold
‣ External contact plating: Gold

Environmental
‣ Operating temperature: -55 to +155 degrees C
‣ IP protection rating (paired): IP64

High performance 75Ω BNC connector to meet the requirements of SMPTE ST 2081-1 and ST 2082-1 for use in 6G and 12G systems.

Technical characteristics

Electric
‣ Impedance: 75 Ohm
‣ Frequency range: Up to 18 GHz
‣ Dielectric withstand voltage: 1500 Veff
‣ Insulation resistance: 5000 M-Ohm
‣Return loss: -35dB at 12GHz

Mechanical
‣ External Ø of the cable: max 7.1 mm
‣ Ø of the central conducting wire: max 1.1 mm
‣ Design standard: CEI 61169-8
‣ RoHS3 compliant: Yes
‣ Center contact termination: Crimp
‣ External contact termination: Crimp
‣ Mating cycles: 500
‣ Contact retention: 10 N min
‣ Cable retention: 150 N min
‣ Mating force: 13.6 N maximum
‣ Decoupling force: 13.6 N maximum

Material
‣ Center contacts: Ottone
‣ External contacts: Brass
‣ Insulation: PTFE
‣ Bayonet cap: Zinc
‣ Center contact plating: Gold
‣ External contact plating: Gold

Environmental
‣ Operating temperature: -55 to +155 degrees C
‣ IP protection rating (paired): IP64

High performance 75Ω BNC connector for 6G and 12G applications.

Technical characteristics

Electric
‣ Impedance: 75 Ohm
‣ Frequency range: Up to 12 GHz
‣ Dielectric withstand voltage: 1500 Veff
‣ Insulation resistance: 5000 M-Ohm
‣Return loss: -19 dB at 12 GHz

Mechanical
‣ External Ø of the cable: max 4.5 mm
‣ Ø of the central conducting wire: max 0.65 mm
‣ Design standard: CEI 61169-8
‣ RoHS3 compliant: Yes
‣ Center contact termination: Crimp
‣ External contact termination: Crimp
‣ Mating cycles: 500
‣ Contact retention: 10 N min
‣ Cable retention: 100 N min
‣ Mating force: 13.6 N maximum
‣ Decoupling force: 13.6 N maximum

Material
‣ Center contacts: Ottone
‣ External contacts: Brass
‣ Insulation: PTFE
‣ Bayonet cap: Zinc
‣ Center contact plating: Gold
‣ External contact plating: Gold

Environmental
‣ Operating temperature: -55 to +155 degrees C
‣ IP protection rating (paired): IP64
