Check the steps that will lead you to have your own Handmade Digital Cable. Each component has its own specific price depending on the type or brand. Once the steps have been completed, choose the quantity of the cable you just made and Add the product to the cart.

The average time we calculate to work, test and ship the custom cable you ordered is 3 working days from receipt of payment.

Select a digital cable

  • *

    The result of the setup is a 110Ω AES/EBU or MIDI digital cable for use with digital audio signals or midi connections
  • Select a digital format *

  • Select the cable brand *

  • *

    Select the cable and in the appropriate box type the length directly or use the arrows.
    ▶︎ The unit of measurement is the meter ( m) and the length entered is intended from welding to welding
  • Select a Eurocable cable *

    Seleziona un cavo digitale: LKDD02S2 (110Ω)

    €1,90

    I NOSTRI BRAND

    ×
    € 1,90
    Eurocable

    Eurocable’s AES/DMX digital cables are designed for AES/EBU digital audio equipment and DMX data transmission in lighting control applications. They have a double shield composed of braided copper and aluminum tape and guarantee a nominal impedance of 110 ohms and an extremely low capacitance.

    SPECS
    Nom. O.D: 6mm
    Weight Kg/100m: 4,67
    Bending radius. >10 xO.D.
    Operating temperature: [-15°C;+80°C]
    Jacket:
    PVC TM2
    Nominal Thickness: >1.0 mm
    Shield:
    Material: Braided electrolytic bare copper shield
    Coverage: 80%
    Foil: AI/PET tape
    Conductor:
    Quantity : 2
    Strand: 7 x 0.203 mm
    Area/AWG: 0.22 mm²/24
    Insul. O.D.: 1.6mm
    Insulation Material: Foamed polyethylene (PEE)
    Electrical Data:
    D.C.R. at 20°C: 94.2 ohm/km
    Capacitance Cond/Cond: 70 pF/m
    Nominal Impedance: 110 ohm/100m
    Attenuation (2-8 MHz): 2.2-7.2 dB/Km
    Vel. of Prop.: 78%
    Inductance : 55uH/100m

  • Select a Cablocustom cable *

    Seleziona un cavo digitale: CC19110 (110Ω)

    €1,98

    I NOSTRI BRAND

    ×
    € 1,98
    Cablocustom

    110Ω digital cable, light and very flexible. Perfect for all audio equipment requiring a balanced digital connection. Braided shielding and flexible “bare” copper conductor. Easy to install, the PVC sheath allows you to maintain flexibility even at temperatures below zero.

    SPECIFICATIONS
    ▸ Sec. of the conditions [mm2 ]:2x AWG24
    ▸ Isol. cond.: Compact medium density polyethylene (MDPE)
    ▸ Insulation colour: WHITE, red
    ▸ Screen: tinned electrolytic copper braid
    ▸ Optical coverage: ≥ 95%
    ▸ Diam. on ins. [mm]: 1.35± 0.05
    ▸ Thickness. isol. [mm]: ≥0.35
    ▸ Form cond. (N° x mm): 7×0.200
    ▸ Ext. sheath diam. [ mm ]: 5.0 ± 0.2
    ▸ Thickness. outer sheath [ mm ]: ≥ 0.80
    ▸ Sheath color: Orange
    Electrical data:
    ▸ Electrical resistance [Ω/Km]: ≤87.6
    ▸ Torque Capacity:
    ( 55 ± 5 ) pF/m ( conductor-conductor )
    ( 120 ± 10 ) pF/m (conductor-shield)

  • Select a Canare cable *

    Seleziona un cavo digitale: DA202 (110Ω)

    €2,21

    I NOSTRI BRAND

    ×
    € 2,21
    Canare

    110 Ohm 25 AWG digital cable, allows use with common IDC Punch Down Blocks of 110 Ohm Digital audio Patchbays. Built to facilitate wiring, usable up to a maximum of 180m in length. Blue color coating Applications: AES/EBU Digital audio, Rack installations, Post Production.

    SPECS
    Nom. O.D: 5.0mm
    Weight Kg/100m: 3,7
    N. of Conductor: 2
    AWG: 25
    Twist Pitch (mm): 32
    Shield coverage (%): 95
    Electrical characteristics:
    Cond. D.C.R. (Ω/100m): 10,6
    Shield D.C.R. (Ω/100m): 2.2
    Nom. Cap* – pF/m: 45

    Seleziona un cavo digitale: DA206 (110Ω)

    €4,03

    I NOSTRI BRAND

    ×
    € 4,03
    Canare

    110 Ohm digital cable with 7.3mm outer diameter, allows use with common IDC Punch Down BLocks of 110 Ohm Digital audio Patchbays. Built to facilitate wiring, usable up to a maximum of 180m in length. Blue color coating Applications: AES/EBU Digital audio, Rack installations, Post Production.

    SPECS
    Nom. O.D: 7.3mm
    Weight Kg/100m: 7,5
    N. of Conductor: 2
    AWG: 20
    Twist Pitch (mm): 60
    Shield coverage (%): 95
    Electrical characteristics:
    Cond. D.C.R. (Ω/100m): 3.3
    Shield D.C.R. (Ω/100m): 1.4
    Nom. Cap* – pF/m: 48
    Nom. Cap** – pF/m: 73

  • Select a Canare cable *

    Seleziona un cavo digitale: DA202 (110Ω)

    €2,21

    I NOSTRI BRAND

    ×
    € 2,21
    Canare

    110 Ohm 25 AWG digital cable, allows use with common IDC Punch Down Blocks of 110 Ohm Digital audio Patchbays. Built to facilitate wiring, usable up to a maximum of 180m in length. Blue color coating Applications: AES/EBU Digital audio, Rack installations, Post Production.

    SPECS
    Nom. O.D: 5.0mm
    Weight Kg/100m: 3,7
    N. of Conductor: 2
    AWG: 25
    Twist Pitch (mm): 32
    Shield coverage (%): 95
    Electrical characteristics:
    Cond. D.C.R. (Ω/100m): 10,6
    Shield D.C.R. (Ω/100m): 2.2
    Nom. Cap* – pF/m: 45

  • Select a Mogami cable *

    Seleziona un cavo digitale: W3080 (110Ω)

    €2,00

    I NOSTRI BRAND

    ×
    € 2,0
    Mogami

    All 110Ω digital Mogami cables are designed with flexibility and for easy setup. Also suitable for applications that require long lengths of cable (150m). Mogami uses a tight impedance tolerance control ranging from +/- 5% to a maximum of +/-10%.

    SPECS:
    Characteristic Impedance: 110Ω
    No. of conductor: 2
    Conductor:
    Details: 7/0.18A (7×#33AWG)
    Size(mm²): 0.178mm² (#25AWG)
    Insulation:
    Ov. Dia.(mm): 1.36Ø (0.054″)
    Material: XLPE
    Color: Red/Clear
    Drain Wire:
    Details: 7/0.18A (7×#33AWG)
    Size: 0.178mm² (#25AWG)
    Served Shield:
    Approx. 60/0.12A (Approx. 60/#37AWG)
    Ov. Jacket:
    Ov. Dia.(mm): 5.0±0.3Ø (0.197±0.0118″Ø)
    Material: Flexible PVC
    Colors: Black

    Seleziona un cavo digitale: W3173 (110Ω)

    €6,60

    I NOSTRI BRAND

    ×
    € 6,6
    Mogami

    Mogami W3173 110 Ohm digital cable with 7.8mm outer diameter. It is specially designed for long distance applications, secured over 300m. Strict control of impedance tolerance within +/- 5% to +/- 10% maximum. Since AES / EBU digital audio cable has low capacitance characteristics, it may cause high quality analog audio transmission in general, especially for high frequencies.

    SPECS:
    Characteristic Impedance: 110Ω
    No. of conductor: 2
    Conductor:
    Details: 19/0.25A (19×#31AWG
    Size(mm²): 0.932mm² (#18AWG)
    Insulation:
    Ov. Dia.(mm): 2.8Ø (0.110″)
    Material: CPP
    Color: Red/White
    Mono-filament Filler:
    Ov. Dia.(mm): 1.87Ø (0.0736″)
    Material: LDPE (Clear)
    Drain Wire:
    Details: 20/0.18TA (20×#33AWG)
    Size: 0.509mm² (#21AWG)
    Served Shield:
    Approx.100/0.18A (Approx.100/#33AWG)
    Ov. Jacket:
    Ov. Dia.(mm): 7.8±0.5Ø(0.307± 0.0197″Ø)
    Material: PVC
    Colors: Black

  • Select a Mogami cable *

    Seleziona un cavo digitale: W3080 (110Ω)

    €2,00

    I NOSTRI BRAND

    ×
    € 2,0
    Mogami

    All 110Ω digital Mogami cables are designed with flexibility and for easy setup. Also suitable for applications that require long lengths of cable (150m). Mogami uses a tight impedance tolerance control ranging from +/- 5% to a maximum of +/-10%.

    SPECS:
    Characteristic Impedance: 110Ω
    No. of conductor: 2
    Conductor:
    Details: 7/0.18A (7×#33AWG)
    Size(mm²): 0.178mm² (#25AWG)
    Insulation:
    Ov. Dia.(mm): 1.36Ø (0.054″)
    Material: XLPE
    Color: Red/Clear
    Drain Wire:
    Details: 7/0.18A (7×#33AWG)
    Size: 0.178mm² (#25AWG)
    Served Shield:
    Approx. 60/0.12A (Approx. 60/#37AWG)
    Ov. Jacket:
    Ov. Dia.(mm): 5.0±0.3Ø (0.197±0.0118″Ø)
    Material: Flexible PVC
    Colors: Black

Side "A" - Select a connector

  • Select the brand *

  • Select the brand *

  • Select a Neutrik XLR *

    Seleziona un conn. XLR-M: NC3MXX

    €4,50

    I NOSTRI BRAND

    ×
    € 4,50
    Neutrik

    3-pole male connector with die-cast zinc shell and silver-plated contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: 2 µm Ag
    ‣ Contacts: Brass (CuZn39Pb3)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell coating: Nickel
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

    Seleziona un conn. XLR-M: NC3MRX

    €9,60

    I NOSTRI BRAND

    ×
    € 9,60
    Neutrik

    Right angle male connector with 3 poles. Die-cast zinc shell and silver-plated contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: 2 µm Ag
    ‣ Contacts: Bronze (CuSn8)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell coating: Nickel
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

     NC3MRX – technical drawing (en)

    Seleziona un conn. XLR-M: NC3MXX-BAG

    €4,60

    I NOSTRI BRAND

    ×
    € 4,60
    Neutrik

    3-pole male connector with black die-cast zinc shell and silver contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: 2 µm Ag
    ‣ Contacts: Brass (CuZn39Pb3)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

    Seleziona un conn. XLR-M: NC3MRX-BAG

    €9,50

    I NOSTRI BRAND

    ×
    € 9,50
    Neutrik

    Right angle male connector with 3 poles. Black die-cast zinc shell and silver contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: 2 µm Ag
    ‣ Contacts: Bronze (CuSn8)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

     NC3MRX – technical drawing (en)

    Seleziona un conn. XLR-M: NC3MXX-B

    €5,60

    I NOSTRI BRAND

    ×
    € 5,60
    Neutrik

    3-pole male connector with black die-cast zinc shell and gold-plated contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: Hard alloy of 0.2 µm Au over 2 µm Ni
    ‣ Contacts: Brass (CuZn39Pb3)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

    Seleziona un conn. XLR-M: NC3MRX-B

    €12,00

    I NOSTRI BRAND

    ×
    € 12
    Neutrik

    Right angle male connector with 3 poles. Black die-cast zinc shell and gold-plated contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: Hard alloy of 0.2 µm Au over 2 µm Ni
    ‣ Contacts: Bronze (CuSn8)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

     NC3MRX – technical drawing (en)

    Seleziona un conn. XLR-M: NC3MXX-HE

    €8,70

    I NOSTRI BRAND

    ×
    € 8,70
    Neutrik

    3-pole male XLR connector, velour-chrome case with gold-plated contacts. Exclusive version of the standard XX series. Precious velor chrome plating. High temperature resistant insulating material

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: Hard alloy of 0.2 µm Au over 2 µm Ni
    ‣ Contacts: Brass (CuZn35Pb2)
    ‣ Inserts: Polyphenylene Sulphide (PPS 40% GR)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell covering: Chrome Velvet
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

  • Select an Amphenol XLR *

    KLOTZ CABLES OUT OF STOCK - OW15Y08 Multicore 8 pairs (110Ω)
    KLOTZ CABLES OUT OF STOCK Original price was: €11,47.Current price is: €5,80.
    Back to products

    Seleziona un conn. XLR-M: AX3M

    €2,90

    I NOSTRI BRAND

    ×
    € 2,90
    Amphenol

    Professional 3-pole XLR male connector with silver plate solder terminals. Entirely designed in Australia. Ergonomic sleeve and cable gland with a diameter suitable for cables from 3mm to 8mm. Housing Shell in die-cast zinc with satin nickel finish which ensures robustness and protection from wear.

    Technical characteristics

    Electric
    ‣ Service voltage: 133V (Not suitable for household applications above 50V)
    ‣ AC RMS voltage test: 1400V
    ‣ Current welding load capacity: 15A
    ‣ Typical contact resistance: ≤3m Ω
    ‣ Insulation resistance: ≥1G Ω

    Mechanical
    ‣ Insertion and extraction force: ≥10N – ≤30N
    ‣ Typical cable retention force: 22Kg to 44Kg
    ‣ External cable diameter: 3 – 8 mm
    ‣ Lifecycles: > 1000

    Material
    ‣ Connector shell: Die-cast zinc alloy
    ‣ Shell finish: Satin nickel
    ‣ Insulation: UL94V-0 PA66, 30% glass filled
    ‣ Boot/Rear Shell Finish: UL94V-0 Noryl N190/Black Santoprene
    ‣ Cable gland: Noryl N190
    ‣ Sleeve: Noryl N190
    ‣ Molded contacts: Brass/Silver

    Environmental
    ‣ Protection class: IP40
    ‣ Temperature range: -25°C to +75°C

    Seleziona un conn. XLR-M: AX3MB

    €3,32

    I NOSTRI BRAND

    ×
    € 3,32
    Amphenol

    Professional 3-pole XLR male connector with Silver Plate solder terminals. Entirely designed in Australia. Ergonomic sleeve and cable gland with a diameter suitable for cables from 3mm to 8mm. Housing Shell in die-cast zinc with black finish which ensures robustness and protection from wear.

    Technical characteristics

    Electric
    ‣ Service voltage: 133V (Not suitable for household applications above 50V)
    ‣ AC RMS voltage test: 1400V
    ‣ Current welding load capacity: 15A
    ‣ Typical contact resistance: ≤3m Ω
    ‣ Insulation resistance: ≥1G Ω

    Mechanical
    ‣ Insertion and extraction force: ≥10N – ≤30N
    ‣ Typical cable retention force: 22Kg to 44Kg
    ‣ External cable diameter: 3 – 8 mm
    ‣ Lifecycles: > 1000

    Material
    ‣ Connector shell: Die-cast zinc alloy
    ‣ Shell Finish: Black Satin Nickel
    ‣ Insulation: UL94V-0 PA66, 30% glass filled
    ‣ Boot/Rear Shell Finish: UL94V-0 Noryl N190/Black Santoprene
    ‣ Cable gland: Noryl N190
    ‣ Sleeve: Noryl N190
    ‣ Molded contacts: Brass/silver

    Environmental
    ‣ Protection class: IP40
    ‣ Temperature range: -25°C to +75°C

    Seleziona un conn. XLR-M: AX3MB-AU

    €4,78

    I NOSTRI BRAND

    ×
    € 4,78
    Amphenol

    Professional 3-pole XLR male connector with gold-plated solder terminals. Entirely designed in Australia. Ergonomic sleeve and cable gland with a diameter suitable for cables from 3mm to 8mm. Housing Shell in die-cast zinc with black finish which ensures robustness and protection from wear.

    Technical characteristics

    Electric
    ‣ Service voltage: 133V (Not suitable for household applications above 50V)
    ‣ AC RMS voltage test: 1400V
    ‣ Current welding load capacity: 15A
    ‣ Typical contact resistance: ≤3m Ω
    ‣ Insulation resistance: ≥1G Ω

    Mechanical
    ‣ Insertion and extraction force: ≥10N – ≤30N
    ‣ Typical cable retention force: 22Kg to 44Kg
    ‣ External cable diameter: 3 – 8 mm
    ‣ Lifecycles: > 1000

    Material
    ‣ Connector shell: Die-cast zinc alloy
    ‣ Shell Finish: Black Satin Nickel
    ‣ Insulation: UL94V-0 PA66, 30% glass filled
    ‣ Boot/Rear Shell Finish: UL94V-0 Noryl N190/Black Santoprene
    ‣ Cable gland: Noryl N190
    ‣ Sleeve: Noryl N190
    ‣ Printed contacts: Gold

    Environmental
    ‣ Protection class: IP40
    ‣ Temperature range: -25°C to +75°C

  • Select a Rean XLR *

    Seleziona un conn. XLR-M: RC3M

    €2,24

    I NOSTRI BRAND

    ×
    € 2,24
    Rean

    3-pin male XLR cable connector, snap-lock design and ergonomic finger groove for comfortable handling. Nickel-plated shell, silver-plated contacts. Suitable for cables with an external diameter of 4 to 7mm

    Technical characteristics

    Electric
    ‣ Contact resistance: ≤ 5 mΩ
    ‣ Insulation resistance:> 1.5GΩ
    ‣Rated contact voltage: <10A

    Mechanical
    ‣ Cable outer Ø: 4.0-7.0 mm
    ‣ Lifecycles: > 1000
    ‣ Insertion and withdrawal force: ≤ 30 N – ≤ 20 N
    ‣ Max wire size: 1.5 mm²
    ‣ Max wire size: 16AWG

    Material
    ‣ Plastic body: PA6+30%GF UL94-HB
    ‣ Contacts: Brass
    ‣ Contact plating: Silver plated
    ‣ Shell: Zinc (ZnAl4Cu1)
    ‣ Shell plating: Zinc
    ‣ Spindle: POM
    ‣ Cable gland: POM
    ‣ Bushing: PA6+30%GF
    ‣ Protective boot: PVC

    Seleziona un conn. XLR-M: RC3MR

    €4,89

    I NOSTRI BRAND

    ×
    € 4,89
    Rean

    3 Pole Right Angle Male XLR Cable Connector with Snap Locking System. Nickel-plated shell, silver-plated contacts. Suitable for cables with an external diameter of 4 to 7mm

    Technical characteristics

    Electric
    ‣ Contact resistance: ≤ 5 mΩ
    ‣ Insulation resistance:> 1.5GΩ
    ‣Rated contact voltage: <10A

    Mechanical
    ‣ Cable outer Ø: 4.0-7.0 mm
    ‣ Lifecycles: > 1000
    ‣ Insertion and withdrawal force: ≤ 30 N – ≤ 20 N
    ‣ Max wire size: 1.5 mm²
    ‣ Max wire size: 16AWG

    Material
    ‣ Plastic body: PA6+30%GF UL94-HB
    ‣ Contacts: Brass
    ‣ Contact plating: Silver plated
    ‣ Shell: Zinc (ZnAl4Cu1)
    ‣ Shell plating: Zinc
    ‣ Spindle: POM
    ‣ Cable gland: POM
    ‣ Bushing: PA6+30%GF
    ‣ Protective boot: PVC

    Seleziona un conn. XLR-M: RC3M-BAG

    €2,23

    I NOSTRI BRAND

    ×
    € 2,23
    Rean

    3-pin male XLR cable connector, snap-lock design and ergonomic finger groove for comfortable handling. Black nickel-plated shell, silver contacts. Suitable for cables with an external diameter of 4 to 7mm

    Technical characteristics

    Electric
    ‣ Contact resistance: ≤ 5 mΩ
    ‣ Insulation resistance:> 1.5GΩ
    ‣Rated contact voltage: <10A

    Mechanical
    ‣ Cable outer Ø: 4.0-7.0 mm
    ‣ Lifecycles: > 1000
    ‣ Insertion and withdrawal force: ≤ 30 N – ≤ 20 N
    ‣ Max wire size: 1.5 mm²
    ‣ Max wire size: 16AWG

    Material
    ‣ Plastic body: PA6+30%GF UL94-HB
    ‣ Contacts: Brass
    ‣ Contact plating: Silver plated
    ‣ Shell: Zinc (ZnAl4Cu1)
    ‣ Shell Plating: Black
    ‣ Spindle: POM
    ‣ Cable gland: POM
    ‣ Bushing: PA6+30%GF
    ‣ Protective boot: PVC

    Seleziona un conn. XLR-M: RC3MR-BAG

    €5,04

    I NOSTRI BRAND

    ×
    € 5,04
    Rean

    3 Pole Right Angle Male XLR Cable Connector with Snap Locking System. Color nickel-plated shell, silver-plated contacts. Suitable for cables with an external diameter of 4 to 7mm

    Technical characteristics

    Electric
    ‣ Contact resistance: ≤ 5 mΩ
    ‣ Insulation resistance:> 1.5GΩ
    ‣Rated contact voltage: <10A

    Mechanical
    ‣ Cable outer Ø: 4.0-7.0 mm
    ‣ Lifecycles: > 1000
    ‣ Insertion and withdrawal force: ≤ 30 N – ≤ 20 N
    ‣ Max wire size: 1.5 mm²
    ‣ Max wire size: 16AWG

    Material
    ‣ Plastic body: PA6+30%GF UL94-HB
    ‣ Contacts: Brass
    ‣ Contact plating: Silver plated
    ‣ Shell: Zinc (ZnAl4Cu1)
    ‣ Shell Plating: Black
    ‣ Spindle: POM
    ‣ Cable gland: POM
    ‣ Bushing: PA6+30%GF
    ‣ Protective boot: PVC

    Seleziona un conn. XLR-M: RC3M-B

    €2,70

    I NOSTRI BRAND

    ×
    € 2,70
    Rean

    3-pin male XLR cable connector, snap-lock design and ergonomic finger groove for comfortable handling. Black nickel-plated shell, gold-plated contacts. Suitable for cables with an external diameter of 4 to 7mm

    Technical characteristics

    Electric
    ‣ Contact resistance: ≤ 5 mΩ
    ‣ Insulation resistance:> 1.5GΩ
    ‣Rated contact voltage: <10A

    Mechanical
    ‣ Cable outer Ø: 4.0-7.0 mm
    ‣ Lifecycles: > 1000
    ‣ Insertion and withdrawal force: ≤ 30 N – ≤ 20 N
    ‣ Max wire size: 1.5 mm²
    ‣ Max wire size: 16AWG

    Material
    ‣ Plastic body: PA6+30%GF UL94-HB
    ‣ Contacts: Brass
    ‣ Contact plating: Gold plated
    ‣ Shell: Zinc (ZnAl4Cu1)
    ‣ Shell Plating: Black
    ‣ Spindle: POM
    ‣ Cable gland: POM
    ‣ Bushing: PA6+30%GF
    ‣ Protective boot: PVC

    Seleziona un conn. XLR-M: RC3MR-B

    €6,30

    I NOSTRI BRAND

    ×
    € 6,30
    Rean

    3 Pole Right Angle Male XLR Cable Connector with Snap Locking System. Black nickel-plated shell, gold-plated contacts. Suitable for cables with an external diameter of 4 to 7mm

    Technical characteristics

    Electric
    ‣ Contact resistance: ≤ 5 mΩ
    ‣ Insulation resistance:> 1.5GΩ
    ‣Rated contact voltage: <10A

    Mechanical
    ‣ Cable outer Ø: 4.0-7.0 mm
    ‣ Lifecycles: > 1000
    ‣ Insertion and withdrawal force: ≤ 30 N – ≤ 20 N
    ‣ Max wire size: 1.5 mm²
    ‣ Max wire size: 16AWG

    Material
    ‣ Plastic body: PA6+30%GF UL94-HB
    ‣ Contacts: Brass
    ‣ Contact plating: Gold plated
    ‣ Shell: Zinc (ZnAl4Cu1)
    ‣ Shell Plating: Black
    ‣ Spindle: POM
    ‣ Cable gland: POM
    ‣ Bushing: PA6+30%GF
    ‣ Protective boot: PVC

  • Select a Rean DIN *

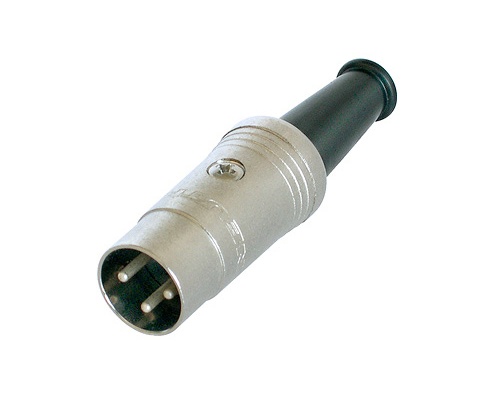

    Seleziona un conn. DIN: NYS321

    €1,86

    I NOSTRI BRAND

    ×
    € 1,86
    Rean

    3-pole male cable connector, with nickel-plated metal shell and “dual fold over” type cable clamp for more demanding uses. PVC tear-proof rubbers and silver contacts. Accepts cables with diameters up to 6.5mm

    Technical characteristics

    Electric
    ‣ Contact resistance: ≤10mΩ
    ‣ Insulation resistance: >1000 MΩ(initial)
    ‣Nominal voltage per contact: 50 VAC

    Mechanical
    ‣ External cable diameter: up to 6.5 mm
    ‣ Lifecycles: > 1000
    ‣ Insertion and retraction force: 3 – 24 N

    Material
    ‣ Insulation: PA66
    ‣ Contacts: Brass
    ‣ Contact plating: Nickel plated
    ‣ Shell: Zinc (ZnAl4Cu1)
    ‣ Shell plating: Nickel
    ‣ Cable clip: galvanized crimp
    ‣ Protective boot: PVC

    Seleziona un conn. DIN: NYS321G

    €2,06

    I NOSTRI BRAND

    ×
    € 2,06
    Rean

    3-pole male cable connector, with nickel-plated metal shell and “dual fold over” type cable clamp for more demanding uses. PVC tear-proof rubbers and gold-plated contacts. Accepts cables with diameters up to 6.5mm

    Technical characteristics

    Electric
    ‣ Contact resistance: ≤10mΩ
    ‣ Insulation resistance: >1000 MΩ(initial)
    ‣Nominal voltage per contact: 50 VAC

    Mechanical
    ‣ External cable diameter: up to 6.5 mm
    ‣ Lifecycles: > 1000
    ‣ Insertion and retraction force: 3 – 24 N

    Material
    ‣ Insulation: PA66
    ‣ Contacts: Brass
    ‣ Contact plating: Au plated
    ‣ Shell: Zinc (ZnAl4Cu1)
    ‣ Shell plating: Nickel
    ‣ Cable clip: galvanized crimp
    ‣ Protective boot: PVC

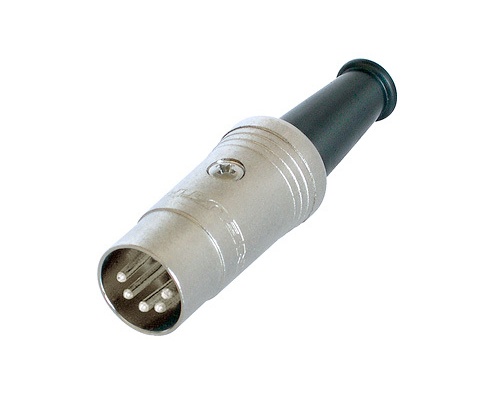

    Seleziona un conn. DIN: NYS322

    €2,02

    I NOSTRI BRAND

    ×
    € 2,02
    Rean

    5-pole male cable connector, with nickel-plated metal shell and “dual fold over” type cable clamp for more demanding uses. PVC tear-proof rubbers and silver contacts. Accepts cables with diameters up to 6.5mm

    Technical characteristics

    Electric
    ‣ Contact resistance: ≤10mΩ
    ‣ Insulation resistance: >1000 MΩ(initial)
    ‣Nominal voltage per contact: 50 VAC

    Mechanical
    ‣ External cable diameter: up to 6.5 mm
    ‣ Lifecycles: > 1000
    ‣ Insertion and retraction force: 3 – 24 N

    Material
    ‣ Insulation: PA66
    ‣ Contacts: Brass
    ‣ Contact plating: Nickel plated
    ‣ Shell: Zinc (ZnAl4Cu1)
    ‣ Shell plating: Nickel
    ‣ Cable clip: galvanized crimp
    ‣ Protective boot: PVC

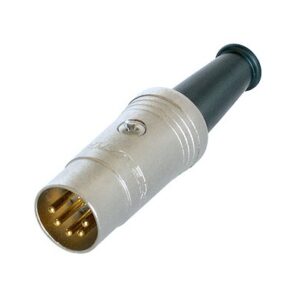

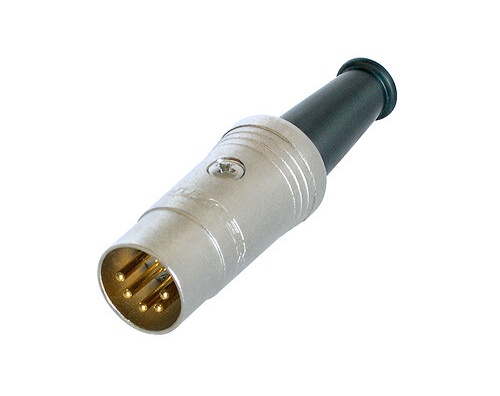

    Seleziona un conn. DIN: NYS322G

    €2,30

    I NOSTRI BRAND

    ×
    € 2,30
    Rean

    5-pole male cable connector, with nickel-plated metal shell and “dual fold over” type cable clamp for more demanding uses. PVC tear-proof rubbers and gold-plated contacts. Accepts cables with diameters up to 6.5mm

    Technical characteristics

    Electric
    ‣ Contact resistance: ≤10mΩ
    ‣ Insulation resistance: >1000 MΩ(initial)
    ‣Nominal voltage per contact: 50 VAC

    Mechanical
    ‣ External cable diameter: up to 6.5 mm
    ‣ Lifecycles: > 1000
    ‣ Insertion and retraction force: 3 – 24 N

    Material
    ‣ Insulation: PA66
    ‣ Contacts: Brass
    ‣ Contact plating: Au plated
    ‣ Shell: Zinc (ZnAl4Cu1)
    ‣ Shell plating: Nickel
    ‣ Cable clip: galvanized crimp
    ‣ Protective boot: PVC

Side "B" - Select a connector

  • Select a Neutrik XLR *

    Seleziona un conn. XLR-F: NC3FXX

    €5,30

    I NOSTRI BRAND

    ×
    € 5,30
    Neutrik

    3-pole female connector with die-cast zinc shell and silver-plated contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: 2 µm Ag
    ‣ Contacts: Bronze (CuSn8)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1) / Ck 67 (spring)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell coating: Nickel
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

    Seleziona un conn. XLR-F: NC3FRX

    €11,40

    I NOSTRI BRAND

    ×
    € 11,40
    Neutrik

    Right angle female connector with 3 poles. Die-cast zinc shell and silver-plated contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: 2 µm Ag
    ‣ Contacts: Bronze (CuSn8)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1) / Ck 67 (spring)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell coating: Nickel
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

     NC3FRX – technical design (en)
  • Select a Neutrik XLR *

    Seleziona un conn. XLR-F: NC3FXX-BAG

    €5,40

    I NOSTRI BRAND

    ×
    € 5,40
    Neutrik

    3-pole female connector with black die-cast zinc shell and silver-plated contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: 2 µm Ag
    ‣ Contacts: Bronze (CuSn8)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1) / Ck 67 (spring)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

    Seleziona un conn. XLR-F: NC3FRX-BAG

    €10,70

    I NOSTRI BRAND

    ×
    € 10,70
    Neutrik

    Right angle female connector with 3 poles. Black die-cast zinc shell and silver contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: 2 µm Ag
    ‣ Contacts: Bronze (CuSn8)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1) / Ck 67 (spring)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

     NC3FRX – technical design (en)
  • Select a Neutrik XLR *

    Seleziona un conn. XLR-F: NC3FXX-B

    €6,90

    I NOSTRI BRAND

    ×
    € 6,90
    Neutrik

    3-pole female connector with black die-cast zinc shell and gold-plated contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: Hard alloy of 0.2 µm Au over 2 µm Ni
    ‣ Contacts: Bronze (CuSn8)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1) / Ck 67 (spring)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

    Seleziona un conn. XLR-F: NC3FRX-B

    €14,80

    I NOSTRI BRAND

    ×
    € 14,80
    Neutrik

    Right angle female connector with 3 poles. Black die-cast zinc shell and gold-plated contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: Hard alloy of 0.2 µm Au over 2 µm Ni
    ‣ Contacts: Bronze (CuSn8)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1) / Ck 67 (spring)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

     NC3FRX – technical design (en)
  • Select a Neutrik XLR *

    Seleziona un conn. XLR-F: NC3FXX-HE

    €10,90

    I NOSTRI BRAND

    ×
    € 10,90
    Neutrik

    3-pole female XLR connector, chrome velor body and machined gold contacts. Exclusive version of the standard XX series. Precious velor chrome plating. High temperature resistant insulating material.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: Hard alloy of 0.2 µm Au over 2 µm Ni
    ‣ Contacts: Brass (CuZn35Pb2)
    ‣ Inserts: Polyphenylene Sulphide (PPS 40% GR)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1) / Ck 67 (spring)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell covering: Chrome Velvet
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

  • Select an Amphenol XLR *

    KLOTZ CABLES OUT OF STOCK - OW15Y08 Multicore 8 pairs (110Ω)
    KLOTZ CABLES OUT OF STOCK Original price was: €11,47.Current price is: €5,80.
    Back to products

    Seleziona un conn. XLR-M: AX3M

    €2,90

    I NOSTRI BRAND

    ×
    € 2,90
    Amphenol

    Professional 3-pole XLR male connector with silver plate solder terminals. Entirely designed in Australia. Ergonomic sleeve and cable gland with a diameter suitable for cables from 3mm to 8mm. Housing Shell in die-cast zinc with satin nickel finish which ensures robustness and protection from wear.

    Technical characteristics

    Electric
    ‣ Service voltage: 133V (Not suitable for household applications above 50V)
    ‣ AC RMS voltage test: 1400V
    ‣ Current welding load capacity: 15A
    ‣ Typical contact resistance: ≤3m Ω
    ‣ Insulation resistance: ≥1G Ω

    Mechanical
    ‣ Insertion and extraction force: ≥10N – ≤30N
    ‣ Typical cable retention force: 22Kg to 44Kg
    ‣ External cable diameter: 3 – 8 mm
    ‣ Lifecycles: > 1000

    Material
    ‣ Connector shell: Die-cast zinc alloy
    ‣ Shell finish: Satin nickel
    ‣ Insulation: UL94V-0 PA66, 30% glass filled
    ‣ Boot/Rear Shell Finish: UL94V-0 Noryl N190/Black Santoprene
    ‣ Cable gland: Noryl N190
    ‣ Sleeve: Noryl N190
    ‣ Molded contacts: Brass/Silver

    Environmental
    ‣ Protection class: IP40
    ‣ Temperature range: -25°C to +75°C

  • Select an Amphenol XLR *

    Seleziona un conn. XLR-M: AX3MB

    €3,32

    I NOSTRI BRAND

    ×
    € 3,32
    Amphenol

    Professional 3-pole XLR male connector with Silver Plate solder terminals. Entirely designed in Australia. Ergonomic sleeve and cable gland with a diameter suitable for cables from 3mm to 8mm. Housing Shell in die-cast zinc with black finish which ensures robustness and protection from wear.

    Technical characteristics

    Electric
    ‣ Service voltage: 133V (Not suitable for household applications above 50V)
    ‣ AC RMS voltage test: 1400V
    ‣ Current welding load capacity: 15A
    ‣ Typical contact resistance: ≤3m Ω
    ‣ Insulation resistance: ≥1G Ω

    Mechanical
    ‣ Insertion and extraction force: ≥10N – ≤30N
    ‣ Typical cable retention force: 22Kg to 44Kg
    ‣ External cable diameter: 3 – 8 mm
    ‣ Lifecycles: > 1000

    Material
    ‣ Connector shell: Die-cast zinc alloy
    ‣ Shell Finish: Black Satin Nickel
    ‣ Insulation: UL94V-0 PA66, 30% glass filled
    ‣ Boot/Rear Shell Finish: UL94V-0 Noryl N190/Black Santoprene
    ‣ Cable gland: Noryl N190
    ‣ Sleeve: Noryl N190
    ‣ Molded contacts: Brass/silver

    Environmental
    ‣ Protection class: IP40
    ‣ Temperature range: -25°C to +75°C

  • Select an Amphenol XLR *

    Seleziona un conn. XLR-M: AX3MB-AU

    €4,78

    I NOSTRI BRAND

    ×
    € 4,78
    Amphenol

    Professional 3-pole XLR male connector with gold-plated solder terminals. Entirely designed in Australia. Ergonomic sleeve and cable gland with a diameter suitable for cables from 3mm to 8mm. Housing Shell in die-cast zinc with black finish which ensures robustness and protection from wear.

    Technical characteristics

    Electric
    ‣ Service voltage: 133V (Not suitable for household applications above 50V)
    ‣ AC RMS voltage test: 1400V
    ‣ Current welding load capacity: 15A
    ‣ Typical contact resistance: ≤3m Ω
    ‣ Insulation resistance: ≥1G Ω

    Mechanical
    ‣ Insertion and extraction force: ≥10N – ≤30N
    ‣ Typical cable retention force: 22Kg to 44Kg
    ‣ External cable diameter: 3 – 8 mm
    ‣ Lifecycles: > 1000

    Material
    ‣ Connector shell: Die-cast zinc alloy
    ‣ Shell Finish: Black Satin Nickel
    ‣ Insulation: UL94V-0 PA66, 30% glass filled
    ‣ Boot/Rear Shell Finish: UL94V-0 Noryl N190/Black Santoprene
    ‣ Cable gland: Noryl N190
    ‣ Sleeve: Noryl N190
    ‣ Printed contacts: Gold

    Environmental
    ‣ Protection class: IP40
    ‣ Temperature range: -25°C to +75°C

  • Select a Rean XLR *

    Seleziona un conn. XLR-M: RC3M

    €2,24

    I NOSTRI BRAND

    ×
    € 2,24
    Rean

    3-pin male XLR cable connector, snap-lock design and ergonomic finger groove for comfortable handling. Nickel-plated shell, silver-plated contacts. Suitable for cables with an external diameter of 4 to 7mm

    Technical characteristics

    Electric
    ‣ Contact resistance: ≤ 5 mΩ
    ‣ Insulation resistance:> 1.5GΩ
    ‣Rated contact voltage: <10A

    Mechanical
    ‣ Cable outer Ø: 4.0-7.0 mm
    ‣ Lifecycles: > 1000
    ‣ Insertion and withdrawal force: ≤ 30 N – ≤ 20 N
    ‣ Max wire size: 1.5 mm²
    ‣ Max wire size: 16AWG

    Material
    ‣ Plastic body: PA6+30%GF UL94-HB
    ‣ Contacts: Brass
    ‣ Contact plating: Silver plated
    ‣ Shell: Zinc (ZnAl4Cu1)
    ‣ Shell plating: Zinc
    ‣ Spindle: POM
    ‣ Cable gland: POM
    ‣ Bushing: PA6+30%GF
    ‣ Protective boot: PVC

    Seleziona un conn. XLR-M: RC3MR

    €4,89

    I NOSTRI BRAND

    ×
    € 4,89
    Rean

    3 Pole Right Angle Male XLR Cable Connector with Snap Locking System. Nickel-plated shell, silver-plated contacts. Suitable for cables with an external diameter of 4 to 7mm

    Technical characteristics

    Electric
    ‣ Contact resistance: ≤ 5 mΩ
    ‣ Insulation resistance:> 1.5GΩ
    ‣Rated contact voltage: <10A

    Mechanical
    ‣ Cable outer Ø: 4.0-7.0 mm
    ‣ Lifecycles: > 1000
    ‣ Insertion and withdrawal force: ≤ 30 N – ≤ 20 N
    ‣ Max wire size: 1.5 mm²
    ‣ Max wire size: 16AWG

    Material
    ‣ Plastic body: PA6+30%GF UL94-HB
    ‣ Contacts: Brass
    ‣ Contact plating: Silver plated
    ‣ Shell: Zinc (ZnAl4Cu1)
    ‣ Shell plating: Zinc
    ‣ Spindle: POM
    ‣ Cable gland: POM
    ‣ Bushing: PA6+30%GF
    ‣ Protective boot: PVC

  • Select a Rean XLR *

    Seleziona un conn. XLR-M: RC3M-BAG

    €2,23

    I NOSTRI BRAND

    ×
    € 2,23
    Rean

    3-pin male XLR cable connector, snap-lock design and ergonomic finger groove for comfortable handling. Black nickel-plated shell, silver contacts. Suitable for cables with an external diameter of 4 to 7mm

    Technical characteristics

    Electric
    ‣ Contact resistance: ≤ 5 mΩ
    ‣ Insulation resistance:> 1.5GΩ
    ‣Rated contact voltage: <10A

    Mechanical
    ‣ Cable outer Ø: 4.0-7.0 mm
    ‣ Lifecycles: > 1000
    ‣ Insertion and withdrawal force: ≤ 30 N – ≤ 20 N
    ‣ Max wire size: 1.5 mm²
    ‣ Max wire size: 16AWG

    Material
    ‣ Plastic body: PA6+30%GF UL94-HB
    ‣ Contacts: Brass
    ‣ Contact plating: Silver plated
    ‣ Shell: Zinc (ZnAl4Cu1)
    ‣ Shell Plating: Black
    ‣ Spindle: POM
    ‣ Cable gland: POM
    ‣ Bushing: PA6+30%GF
    ‣ Protective boot: PVC

    Seleziona un conn. XLR-M: RC3MR-BAG

    €5,04

    I NOSTRI BRAND

    ×
    € 5,04
    Rean

    3 Pole Right Angle Male XLR Cable Connector with Snap Locking System. Color nickel-plated shell, silver-plated contacts. Suitable for cables with an external diameter of 4 to 7mm

    Technical characteristics

    Electric
    ‣ Contact resistance: ≤ 5 mΩ
    ‣ Insulation resistance:> 1.5GΩ
    ‣Rated contact voltage: <10A

    Mechanical
    ‣ Cable outer Ø: 4.0-7.0 mm
    ‣ Lifecycles: > 1000
    ‣ Insertion and withdrawal force: ≤ 30 N – ≤ 20 N
    ‣ Max wire size: 1.5 mm²
    ‣ Max wire size: 16AWG

    Material
    ‣ Plastic body: PA6+30%GF UL94-HB
    ‣ Contacts: Brass
    ‣ Contact plating: Silver plated
    ‣ Shell: Zinc (ZnAl4Cu1)
    ‣ Shell Plating: Black
    ‣ Spindle: POM
    ‣ Cable gland: POM
    ‣ Bushing: PA6+30%GF
    ‣ Protective boot: PVC

  • Select a Rean XLR *

    Seleziona un conn. XLR-M: RC3M-B

    €2,70

    I NOSTRI BRAND

    ×
    € 2,70
    Rean

    3-pin male XLR cable connector, snap-lock design and ergonomic finger groove for comfortable handling. Black nickel-plated shell, gold-plated contacts. Suitable for cables with an external diameter of 4 to 7mm

    Technical characteristics

    Electric
    ‣ Contact resistance: ≤ 5 mΩ
    ‣ Insulation resistance:> 1.5GΩ
    ‣Rated contact voltage: <10A

    Mechanical
    ‣ Cable outer Ø: 4.0-7.0 mm
    ‣ Lifecycles: > 1000
    ‣ Insertion and withdrawal force: ≤ 30 N – ≤ 20 N
    ‣ Max wire size: 1.5 mm²
    ‣ Max wire size: 16AWG

    Material
    ‣ Plastic body: PA6+30%GF UL94-HB
    ‣ Contacts: Brass
    ‣ Contact plating: Gold plated
    ‣ Shell: Zinc (ZnAl4Cu1)
    ‣ Shell Plating: Black
    ‣ Spindle: POM
    ‣ Cable gland: POM
    ‣ Bushing: PA6+30%GF
    ‣ Protective boot: PVC

    Seleziona un conn. XLR-M: RC3MR-B

    €6,30

    I NOSTRI BRAND

    ×
    € 6,30
    Rean

    3 Pole Right Angle Male XLR Cable Connector with Snap Locking System. Black nickel-plated shell, gold-plated contacts. Suitable for cables with an external diameter of 4 to 7mm

    Technical characteristics

    Electric
    ‣ Contact resistance: ≤ 5 mΩ
    ‣ Insulation resistance:> 1.5GΩ
    ‣Rated contact voltage: <10A

    Mechanical
    ‣ Cable outer Ø: 4.0-7.0 mm
    ‣ Lifecycles: > 1000
    ‣ Insertion and withdrawal force: ≤ 30 N – ≤ 20 N
    ‣ Max wire size: 1.5 mm²
    ‣ Max wire size: 16AWG

    Material
    ‣ Plastic body: PA6+30%GF UL94-HB
    ‣ Contacts: Brass
    ‣ Contact plating: Gold plated
    ‣ Shell: Zinc (ZnAl4Cu1)
    ‣ Shell Plating: Black
    ‣ Spindle: POM
    ‣ Cable gland: POM
    ‣ Bushing: PA6+30%GF
    ‣ Protective boot: PVC

  • Select a Rean DIN *

    Seleziona un conn. DIN: NYS321

    €1,86

    I NOSTRI BRAND

    ×
    € 1,86
    Rean

    3-pole male cable connector, with nickel-plated metal shell and “dual fold over” type cable clamp for more demanding uses. PVC tear-proof rubbers and silver contacts. Accepts cables with diameters up to 6.5mm

    Technical characteristics

    Electric
    ‣ Contact resistance: ≤10mΩ
    ‣ Insulation resistance: >1000 MΩ(initial)
    ‣Nominal voltage per contact: 50 VAC

    Mechanical
    ‣ External cable diameter: up to 6.5 mm
    ‣ Lifecycles: > 1000
    ‣ Insertion and retraction force: 3 – 24 N

    Material
    ‣ Insulation: PA66
    ‣ Contacts: Brass
    ‣ Contact plating: Nickel plated
    ‣ Shell: Zinc (ZnAl4Cu1)
    ‣ Shell plating: Nickel
    ‣ Cable clip: galvanized crimp
    ‣ Protective boot: PVC

  • Select a Rean DIN *

    Seleziona un conn. DIN: NYS321G

    €2,06

    I NOSTRI BRAND

    ×
    € 2,06
    Rean

    3-pole male cable connector, with nickel-plated metal shell and “dual fold over” type cable clamp for more demanding uses. PVC tear-proof rubbers and gold-plated contacts. Accepts cables with diameters up to 6.5mm

    Technical characteristics

    Electric
    ‣ Contact resistance: ≤10mΩ
    ‣ Insulation resistance: >1000 MΩ(initial)
    ‣Nominal voltage per contact: 50 VAC

    Mechanical
    ‣ External cable diameter: up to 6.5 mm
    ‣ Lifecycles: > 1000
    ‣ Insertion and retraction force: 3 – 24 N

    Material
    ‣ Insulation: PA66
    ‣ Contacts: Brass
    ‣ Contact plating: Au plated
    ‣ Shell: Zinc (ZnAl4Cu1)
    ‣ Shell plating: Nickel
    ‣ Cable clip: galvanized crimp
    ‣ Protective boot: PVC

  • Select a Rean DIN *

    Seleziona un conn. DIN: NYS322

    €2,02

    I NOSTRI BRAND

    ×
    € 2,02
    Rean

    5-pole male cable connector, with nickel-plated metal shell and “dual fold over” type cable clamp for more demanding uses. PVC tear-proof rubbers and silver contacts. Accepts cables with diameters up to 6.5mm

    Technical characteristics

    Electric
    ‣ Contact resistance: ≤10mΩ
    ‣ Insulation resistance: >1000 MΩ(initial)
    ‣Nominal voltage per contact: 50 VAC

    Mechanical
    ‣ External cable diameter: up to 6.5 mm
    ‣ Lifecycles: > 1000
    ‣ Insertion and retraction force: 3 – 24 N

    Material
    ‣ Insulation: PA66
    ‣ Contacts: Brass
    ‣ Contact plating: Nickel plated
    ‣ Shell: Zinc (ZnAl4Cu1)
    ‣ Shell plating: Nickel
    ‣ Cable clip: galvanized crimp
    ‣ Protective boot: PVC

  • Select a Rean DIN *

    Seleziona un conn. DIN: NYS322G

    €2,30

    I NOSTRI BRAND

    ×
    € 2,30
    Rean

    5-pole male cable connector, with nickel-plated metal shell and “dual fold over” type cable clamp for more demanding uses. PVC tear-proof rubbers and gold-plated contacts. Accepts cables with diameters up to 6.5mm

    Technical characteristics

    Electric
    ‣ Contact resistance: ≤10mΩ
    ‣ Insulation resistance: >1000 MΩ(initial)
    ‣Nominal voltage per contact: 50 VAC

    Mechanical
    ‣ External cable diameter: up to 6.5 mm
    ‣ Lifecycles: > 1000
    ‣ Insertion and retraction force: 3 – 24 N

    Material
    ‣ Insulation: PA66
    ‣ Contacts: Brass
    ‣ Contact plating: Au plated
    ‣ Shell: Zinc (ZnAl4Cu1)
    ‣ Shell plating: Nickel
    ‣ Cable clip: galvanized crimp
    ‣ Protective boot: PVC

  • *

    After selecting the connectors on both sides, you have finished your configuration.
    All our cables are assembled by hand by an expert technician and are rigorously tested before being shipped. The price of the processing is calculated according to the time it requires, in fractions of an hour and includes labour, laboratory costs, various small parts (heat-shrinkable, tin, etc.) and after-sales service.
  • Notes (optional): *

    Max: 130 characters

Product total

Options total

Global sum

More Information

From Cablocustom you can create various customizable products: analogue cables, digital cables, Split (Y) cables, power cables, Hi-Fi cables, analogue multicore cables, multicore cables with LK, multicore cables with Edac, digital multicore cables, Tie Line and Stage Box.

Spedizioni
Il Corriere Convenzionato con Proaudio Srl è Fedex/TNT con una previsione di consegna, per tutto il territorio nazionale, di 24 ore dalla data di spedizione, fatta eccezione per le seguenti regioni: Calabria, Sicilia,Sardegna,Venezia e isole minori dove la consegna è prevista in 48 ore. Una e-mail preventiva anticiperà la consegna. In caso di mancato recapito il cliente verrà informato tramite e-mail e comunque verrà effettuato un secondo tentativo il giorno seguente. Se anche in questo caso la consegna non andrà a buon fine, la merce ritornerà presso la sede TNT della propria zona e rimarra in deposito per 4gg (entro i quali l'acquirente potrà scegliere di recarsi personalmente presso la sede del corriere a ritirare la merce o richiedere un ulteriore consegna a pagamento ). La merce disponibile presso i nostri magazzini verrà spedita entro le 24 ore successive dal ricevimento dell'ordine e comunque non prima dell'effettiva ricezione del pagamento. Le spese di spedizione riportate al momento dell'ordine, coprono la sola consegna al piano terra, non ai piani superiori. Per esigenze diverse consigliamo di contattare il nostro servizio clienti [email protected]

I NOSTRI BRAND
