Check the steps that will lead to having your own Handmade power cord. Each component has its own specific price depending on the type or brand. Once the steps have been completed, choose the quantity of the cable you just made and Add the product to the cart.

The average time we calculate to work, test and ship the custom cable you ordered is 3 working days from receipt of payment.

Select a power cord

  • *

    The result of the configuration is a power cable for use with Hi-Fi equipment
  • Select the cable brand *

  • *

    Select the cable and in the appropriate box type the length directly or use the arrows.
    ▶︎ The unit of measurement is the meter ( m) and the length entered is intended from welding to welding
  • Select a Viablue cable *

    Seleziona un cavo di Alimentazione: X-25

    €28,00

    I NOSTRI BRAND

    ×
    € 28
    Viablue

    The X25 power cable provides “clean” power to your Audio and Video equipment. The double shielding with a 100% aluminum foil and 93% copper protects against interference from electromagnetic and radio frequency sources, guaranteeing clean and crystal clear sound. The external diameter of the power cable is 12.5mm, still maintaining elasticity and flexibility. It is VDE VIABLUE â„¢

    SPECIFICATIONS:
    â–¸ 100% shielding thanks to woven and aluminum foil screens
    â–¸ Silver plated copper wires, 3 cores
    â–¸ Maximum seal thanks to the double screw cable gland
    ▸ External Ø X-25: 12.5 mm
    ▸ X-25 conductor cross-section: 3x 2.5 mm²
    â–¸ Insulation resistance: > 20 MOhmxKM
    â–¸ Test voltage: 3000 Volts

    Seleziona un cavo di Alimentazione: X-40

    €40,00

    I NOSTRI BRAND

    ×
    € 40
    Viablue

    The X40 power cable provides “clean” power to your Audio and Video equipment. The double shielding with a 100% aluminum foil and 93% copper protects against interference from electromagnetic and radio frequency sources, guaranteeing clean and crystal clear sound. The external diameter of the power cable is 14mm, still maintaining elasticity and flexibility. It is VDE VIABLUE â„¢

    SPECIFICATIONS:
    â–¸ 100% shielding thanks to woven and aluminum foil screens
    â–¸ Silver plated copper wires, 3 cores
    â–¸ Maximum seal thanks to the double screw cable gland
    ▸ External Ø X-40: 14 mm
    ▸ X-40 conductor cross-section: 3x 4 mm²
    â–¸ Insulation resistance: > 20 MOhmxKM
    â–¸ Test voltage: 3000 Volts

    Seleziona un cavo di Alimentazione: X-60

    €53,00

    I NOSTRI BRAND

    ×
    € 53
    Viablue

    The X40 power cable provides “clean” power to your Audio and Video equipment. The double shielding with a 100% aluminum foil and 93% copper protects against interference from electromagnetic and radio frequency sources, guaranteeing clean and crystal clear sound. The external diameter of the power cable is 16.5 mm, still maintaining elasticity and flexibility. It is VDE VIABLUE â„¢

    SPECIFICATIONS:
    â–¸ 100% shielding thanks to woven and aluminum foil screens
    â–¸ Silver plated copper wires, 3 cores
    â–¸ Maximum seal thanks to the double screw cable gland
    ▸ External Ø X-60: 16.5 mm
    ▸ X-60 conductor cross-section: 3x 6 mm²
    â–¸ Insulation resistance: > 20 MOhmxKM
    â–¸ Test voltage: 3000 Volts

  • Do you want the protective sock for the cable? *

  • *

    Select the sock and in the appropriate box type the length directly or use the arrows.
    ▶︎ Type the same measurement entered for the cable
  • Seleziona la calza *

    Back to products
    CABLOCUSTOM MIC/BALANCED CABLES
    CABLOCUSTOM MIC/BALANCED CABLES Price range: €1,26 through €2,60

    Seleziona una calza protettiva: Race medium

    €4,30

    I NOSTRI BRAND

    ×
    € 4,30
    Viablue

    Braided protective grommet composed of expanding fabric fillers within the sock, combined together with monofilaments. “Medium” size made for cables with diameters from 5 to 13mm.

    AMPHENOL D-SUB MALE CONNECTORS (KIT)
    AMPHENOL D-SUB MALE CONNECTORS (KIT) Price range: €3,10 through €9,30
    Back to products
    CABLOCUSTOM MIC/BALANCED CABLES
    CABLOCUSTOM MIC/BALANCED CABLES Price range: €1,26 through €2,60

    Seleziona una calza protettiva: Stone medium

    €4,30

    I NOSTRI BRAND

    ×
    € 4,30
    Viablue

    Braided protective grommet composed of expanding fabric fillers within the sock, combined together with monofilaments. “Medium” size made for cables with diameters from 5 to 13mm.

    Seleziona una calza protettiva: Black medium

    €4,00

    I NOSTRI BRAND

    ×
    € 4
    Viablue

    Braided protective grommet composed of expanding fabric fillers within the sock, combined together with monofilaments. “Medium” size made for cables with diameters from 5 to 13mm.

    Back to products
    CABLOCUSTOM MIC/BALANCED CABLES
    CABLOCUSTOM MIC/BALANCED CABLES Price range: €1,26 through €2,60

    Seleziona una calza protettiva: Blu medium

    €4,30

    I NOSTRI BRAND

    ×
    € 4,30
    Viablue

    Calza passacavo protettiva intrecciata composta da riempitivi di tessuto in espansione all’interno della calza, combinata insieme a monofilamenti. Misura “medium” realizzata per cavi con diametro da 5 a 13mm.

    Seleziona una calza protettiva: Red medium

    €4,30

    I NOSTRI BRAND

    ×
    € 4,30
    Viablue

    Braided protective grommet composed of expanding fabric fillers within the sock, combined together with monofilaments. “Medium” size made for cables with diameters from 5 to 13mm.

    Back to products
    CABLOCUSTOM MIC/BALANCED CABLES
    CABLOCUSTOM MIC/BALANCED CABLES Price range: €1,26 through €2,60

    Seleziona una calza protettiva: Neon medium

    €4,30

    I NOSTRI BRAND

    ×
    € 4,30
    Viablue

    Braided protective grommet composed of expanding fabric fillers within the sock, combined together with monofilaments. “Medium” size made for cables with diameters from 5 to 13mm.

    Seleziona una calza protettiva: Orange medium

    €4,30

    I NOSTRI BRAND

    ×
    € 4,3
    Viablue

    Calza passacavo protettiva intrecciata composta da riempitivi di tessuto in espansione all’interno della calza, combinata insieme a monofilamenti. Misura “medium” realizzata per cavi con diametro da 5 a 13mm.

  • Seleziona la calza *

    Back to products
    CABLOCUSTOM MIC/BALANCED CABLES
    CABLOCUSTOM MIC/BALANCED CABLES Price range: €1,26 through €2,60

    Seleziona una calza protettiva: Race Big

    €7,30

    I NOSTRI BRAND

    ×
    € 7,30
    Viablue

    Braided protective grommet composed of expanding fabric fillers within the sock, combined together with monofilaments. “Big” size made for cables with diameters from 13 to 26mm.

    Seleziona una calza protettiva: Stone big

    €7,30

    I NOSTRI BRAND

    ×
    € 7,30
    Viablue

    Braided protective grommet composed of expanding fabric fillers within the sock, combined together with monofilaments. “Big” size made for cables with diameters from 13 to 26mm.

    Seleziona una calza protettiva: Black big

    €6,90

    I NOSTRI BRAND

    ×
    € 6,9
    Viablue

    Braided protective grommet composed of expanding fabric fillers within the sock, combined together with monofilaments. “Big” size made for cables with diameters from 13 to 26mm.

    Back to products
    CABLOCUSTOM MIC/BALANCED CABLES
    CABLOCUSTOM MIC/BALANCED CABLES Price range: €1,26 through €2,60

    Seleziona una calza protettiva: Blue big

    €7,30

    I NOSTRI BRAND

    ×
    € 7,30
    Viablue

    Calza passacavo protettiva intrecciata composta da riempitivi di tessuto in espansione all’interno della calza, combinata insieme a monofilamenti. Misura “big” realizzata per cavi con diametro da 13 a 26mm.

    Seleziona una calza protettiva: Red big

    €7,30

    I NOSTRI BRAND

    ×
    € 7,30
    Viablue

    Braided protective grommet composed of expanding fabric fillers within the sock, combined together with monofilaments. “Big” size made for cables with diameters from 13 to 26mm.

    Back to products
    CABLOCUSTOM MIC/BALANCED CABLES
    CABLOCUSTOM MIC/BALANCED CABLES Price range: €1,26 through €2,60

    Seleziona una calza protettiva: Neon big

    €7,30

    I NOSTRI BRAND

    ×
    € 7,30
    Viablue

    Braided protective grommet composed of expanding fabric fillers within the sock, combined together with monofilaments. “Big” size made for cables with diameters from 13 to 26mm.

    Seleziona una calza protettiva: Orange big

    €7,30

    I NOSTRI BRAND

    ×
    € 7,3
    Viablue

    Calza passacavo protettiva intrecciata composta da riempitivi di tessuto in espansione all’interno della calza, combinata insieme a monofilamenti. Misura “big” realizzata per cavi con diametro da 13 a 26mm.

Side "A" - Select a connector

  • Select the brand *

  • Select Viablue *

    Seleziona un conn. elettrico: T6S CEE 7/7

    €119,00

    I NOSTRI BRAND

    ×
    € 119
    Viablue

    Shucko electrical plug with 24K gold contacts, suitable for cables up to 16mm. Unique non-scratch surface Viablue Ultragrip with a super-solid shell, flame retardant and explosion proof. Centered fixing of the cable using two different diameter reducers.

    Specifications
    â–¸ 24K real gold plated
    â–¸ Flexible cable entry for cable Ø 6 – 16 mm
    â–¸ Unique scratch-resistant VIABLUEâ„¢ Ultragrip surface
    â–¸ Super solid, fireproof, unbreakable shell

    For stable and clean electricity we recommend
    â–¸ VIABLUEâ„¢ X-25 AC Power Cord Silver
    â–¸ VIABLUEâ„¢ X-40 AC Power Cord Silver
    â–¸ VIABLUEâ„¢ X-60 AC Power Cord Silver

    Technical specifications
    â–¸ finish: 24K real gold plating
    â–¸ Cable entry with cable gland for cable Ø 6 – 16 mm
    â–¸ VIABLUEâ„¢ Ultragrip coating, scratch-resistant, satin finish
    â–¸ Centered cable mounting using 2 reducers of different diameters
    â–¸ Dust-free cable sealing thanks to soft-disc technology
    â–¸ Cable fixing via double screw connection
    â–¸ Connector shell made of fireproof and shatterproof polycarbonate
    â–¸ Total length 102 mm
    ▸ Max cable Ø40 mm

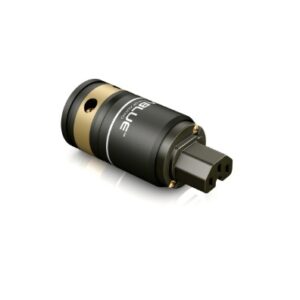

    Seleziona un conn. elettrico: T6S IEC C15

    €114,00

    I NOSTRI BRAND

    ×
    € 114
    Viablue

    IEC C15 electrical plug with 24K gold contacts, suitable for cables up to 16mm. Unique non-scratch surface Viablue Ultragrip with a super-solid shell, flame retardant and explosion proof. Centered fixing of the cable using two different diameter reducers.

    Specifications
    â–¸ 24K real gold plated
    â–¸ Flexible cable entry for cable Ø 6 – 16 mm
    â–¸ Unique scratch-resistant VIABLUEâ„¢ Ultragrip surface
    â–¸ Super solid, fireproof, unbreakable shell

    For stable and clean electricity we recommend
    â–¸ VIABLUEâ„¢ X-25 AC Power Cord Silver
    â–¸ VIABLUEâ„¢ X-40 AC Power Cord Silver
    â–¸ VIABLUEâ„¢ X-60 AC Power Cord Silver

    Technical specifications
    â–¸ finish: 24K real gold plating
    â–¸ Cable entry with cable gland for cable Ø 6 – 16 mm
    â–¸ VIABLUEâ„¢ Ultragrip coating, scratch-resistant, satin finish
    â–¸ Centered cable mounting using 2 reducers of different diameters
    â–¸ Dust-free cable sealing thanks to soft-disc technology
    â–¸ Cable fixing via double screw connection
    â–¸ Connector shell made of fireproof and shatterproof polycarbonate
    â–¸ Total length 92 mm
    ▸ Max cable Ø40 mm

    Seleziona un conn. elettrico: T6S IEC C7

    €110,00

    I NOSTRI BRAND

    ×
    € 110
    Viablue

    IEC C7 electrical plug with 24K gold contacts, suitable for cables up to 16mm. Unique non-scratch surface Viablue Ultragrip with a super-solid shell, flame retardant and explosion proof. Centered fixing of the cable using two different diameter reducers.

    Specifications
    â–¸ 24K real gold plated
    â–¸ Flexible cable entry for cable Ø 6 – 16 mm
    â–¸ Unique scratch-resistant VIABLUEâ„¢ Ultragrip surface
    â–¸ Super solid, fireproof, unbreakable shell

    For stable and clean electricity we recommend
    â–¸ VIABLUEâ„¢ X-25 AC Power Cord Silver
    â–¸ VIABLUEâ„¢ X-40 AC Power Cord Silver
    â–¸ VIABLUEâ„¢ X-60 AC Power Cord Silver

    Technical specifications
    â–¸ finish: 24K real gold plating
    â–¸ Cable entry with cable gland for cable Ø 6 – 16 mm
    â–¸ VIABLUEâ„¢ Ultragrip coating, scratch-resistant, satin finish
    â–¸ Centered cable mounting using 2 reducers of different diameters
    â–¸ Dust-free cable sealing thanks to soft-disc technology
    â–¸ Cable fixing via double screw connection
    â–¸ Connector shell made of fireproof and shatterproof polycarbonate
    â–¸ Total length 92 mm
    ▸ Max cable Ø40 mm

Side "B" - Select a connector

  • Select a Viablue *

    Seleziona un conn. elettrico: T6S CEE 7/7

    €119,00

    I NOSTRI BRAND

    ×
    € 119
    Viablue

    Shucko electrical plug with 24K gold contacts, suitable for cables up to 16mm. Unique non-scratch surface Viablue Ultragrip with a super-solid shell, flame retardant and explosion proof. Centered fixing of the cable using two different diameter reducers.

    Specifications
    â–¸ 24K real gold plated
    â–¸ Flexible cable entry for cable Ø 6 – 16 mm
    â–¸ Unique scratch-resistant VIABLUEâ„¢ Ultragrip surface
    â–¸ Super solid, fireproof, unbreakable shell

    For stable and clean electricity we recommend
    â–¸ VIABLUEâ„¢ X-25 AC Power Cord Silver
    â–¸ VIABLUEâ„¢ X-40 AC Power Cord Silver
    â–¸ VIABLUEâ„¢ X-60 AC Power Cord Silver

    Technical specifications
    â–¸ finish: 24K real gold plating
    â–¸ Cable entry with cable gland for cable Ø 6 – 16 mm
    â–¸ VIABLUEâ„¢ Ultragrip coating, scratch-resistant, satin finish
    â–¸ Centered cable mounting using 2 reducers of different diameters
    â–¸ Dust-free cable sealing thanks to soft-disc technology
    â–¸ Cable fixing via double screw connection
    â–¸ Connector shell made of fireproof and shatterproof polycarbonate
    â–¸ Total length 102 mm
    ▸ Max cable Ø40 mm

    Seleziona un conn. elettrico: T6S IEC C15

    €114,00

    I NOSTRI BRAND

    ×
    € 114
    Viablue

    IEC C15 electrical plug with 24K gold contacts, suitable for cables up to 16mm. Unique non-scratch surface Viablue Ultragrip with a super-solid shell, flame retardant and explosion proof. Centered fixing of the cable using two different diameter reducers.

    Specifications
    â–¸ 24K real gold plated
    â–¸ Flexible cable entry for cable Ø 6 – 16 mm
    â–¸ Unique scratch-resistant VIABLUEâ„¢ Ultragrip surface
    â–¸ Super solid, fireproof, unbreakable shell

    For stable and clean electricity we recommend
    â–¸ VIABLUEâ„¢ X-25 AC Power Cord Silver
    â–¸ VIABLUEâ„¢ X-40 AC Power Cord Silver
    â–¸ VIABLUEâ„¢ X-60 AC Power Cord Silver

    Technical specifications
    â–¸ finish: 24K real gold plating
    â–¸ Cable entry with cable gland for cable Ø 6 – 16 mm
    â–¸ VIABLUEâ„¢ Ultragrip coating, scratch-resistant, satin finish
    â–¸ Centered cable mounting using 2 reducers of different diameters
    â–¸ Dust-free cable sealing thanks to soft-disc technology
    â–¸ Cable fixing via double screw connection
    â–¸ Connector shell made of fireproof and shatterproof polycarbonate
    â–¸ Total length 92 mm
    ▸ Max cable Ø40 mm

    Seleziona un conn. elettrico: T6S IEC C7

    €110,00

    I NOSTRI BRAND

    ×
    € 110
    Viablue

    IEC C7 electrical plug with 24K gold contacts, suitable for cables up to 16mm. Unique non-scratch surface Viablue Ultragrip with a super-solid shell, flame retardant and explosion proof. Centered fixing of the cable using two different diameter reducers.

    Specifications
    â–¸ 24K real gold plated
    â–¸ Flexible cable entry for cable Ø 6 – 16 mm
    â–¸ Unique scratch-resistant VIABLUEâ„¢ Ultragrip surface
    â–¸ Super solid, fireproof, unbreakable shell

    For stable and clean electricity we recommend
    â–¸ VIABLUEâ„¢ X-25 AC Power Cord Silver
    â–¸ VIABLUEâ„¢ X-40 AC Power Cord Silver
    â–¸ VIABLUEâ„¢ X-60 AC Power Cord Silver

    Technical specifications
    â–¸ finish: 24K real gold plating
    â–¸ Cable entry with cable gland for cable Ø 6 – 16 mm
    â–¸ VIABLUEâ„¢ Ultragrip coating, scratch-resistant, satin finish
    â–¸ Centered cable mounting using 2 reducers of different diameters
    â–¸ Dust-free cable sealing thanks to soft-disc technology
    â–¸ Cable fixing via double screw connection
    â–¸ Connector shell made of fireproof and shatterproof polycarbonate
    â–¸ Total length 92 mm
    ▸ Max cable Ø40 mm

  • *

    After selecting a connector on both sides, your configuration is finished.
    All our cables are assembled by hand by an expert technician and are rigorously tested before being shipped. The price of the processing is calculated according to the time it requires, in fractions of an hour and includes labour, laboratory costs, various small parts (heat-shrinkable, tin, etc.) and after-sales service.
  • Notes (optional): *

    0 / 130

    Max: 130 characters

Product total

Options total

Global sum

More Information

Dat Cablocustom you can create various customizable products: analogue cables, digital cables, Split (Y) cables, power cables, Hi-Fi cables, analogue multicore cables, multicore cables with LK, multicore cables with Edac, digital multicore cables, Tie Line and Stage Box.

Spedizioni
Il Corriere Convenzionato con Proaudio Srl è Fedex/TNT con una previsione di consegna, per tutto il territorio nazionale, di 24 ore dalla data di spedizione, fatta eccezione per le seguenti regioni: Calabria, Sicilia,Sardegna,Venezia e isole minori dove la consegna è prevista in 48 ore. Una e-mail preventiva anticiperà la consegna. In caso di mancato recapito il cliente verrà informato tramite e-mail e comunque verrà effettuato un secondo tentativo il giorno seguente. Se anche in questo caso la consegna non andrà a buon fine, la merce ritornerà presso la sede TNT della propria zona e rimarra in deposito per 4gg (entro i quali l'acquirente potrà scegliere di recarsi personalmente presso la sede del corriere a ritirare la merce o richiedere un ulteriore consegna a pagamento ). La merce disponibile presso i nostri magazzini verrà spedita entro le 24 ore successive dal ricevimento dell'ordine e comunque non prima dell'effettiva ricezione del pagamento. Le spese di spedizione riportate al momento dell'ordine, coprono la sola consegna al piano terra, non ai piani superiori. Per esigenze diverse consigliamo di contattare il nostro servizio clienti [email protected]

I NOSTRI BRAND
