CREATE YOUR OWN DIGITAL Hi-Fi CABLE

High-end male RCA connector, with black ring.

Specifications
▸ Uniquely shaped contact crown to optimize contact
contact pressure and provide a tight connection
▸ 24K Gold Plated
▸ External shell in satin black aluminum
▸ Cable gland provided by two 1.5mm M4 hex socket screws
▸ Cable gland for cable Ø 4 – 9.5 mm

Additional features
Solder version: 2 diameter reducers to comfortably adapt to various cable diameters

assembly instructions
For cable assembly, the contacts can be completely separated from their shell.
The stripped ends of the cable are soldered to the contact element.

Technical specifications
▸ Ø 13.5 mm
▸ Shell length 30.5 mm
▸ Cable gland length 24 mm
▸ Cable entry Ø 4 – 9.5 mm

High-end male RCA connector, with red ring.

Specifications
▸ Uniquely shaped contact crown to optimize contact
contact pressure and provide a tight connection
▸ 24K Gold Plated
▸ External shell in satin black aluminum
▸ Cable gland provided by two 1.5mm M4 hex socket screws
▸ Cable gland for cable Ø 4 – 9.5 mm

Additional features
Solder version: 2 diameter reducers to comfortably adapt to various cable diameters

assembly instructions
For cable assembly, the contacts can be completely separated from their shell.
The stripped ends of the cable are soldered to the contact element.

Technical specifications
▸ Ø 13.5 mm
▸ Shell length 30.5 mm
▸ Cable gland length 24 mm
▸ Cable entry Ø 4 – 9.5 mm

Male RCA connector with insulating shell and black ring

Specifications
▸ 24K real gold plated
▸ One-piece grounded tubular metal shell,
completely closed for complete electrical shielding
▸ Short circuit protection thanks to an additional transparent insulating shell
▸ Solder connections
▸ Cable gland for cable up to 8 mm

assembly instructions
For cable assembly, the contacts can be completely separated from their shell.
The stripped ends of the cable are soldered to the contact element.

Technical specifications
▸ Ø 13.5 mm
▸ Shell length 29.5 mm
▸ 8mm cable entry

Male RCA connector with insulating shell and red ring

Specifications
▸ 24K real gold plated
▸ One-piece grounded tubular metal shell,
completely closed for complete electrical shielding
▸ Short circuit protection thanks to an additional transparent insulating shell
▸ Solder connections
▸ Cable gland for cable up to 8 mm

assembly instructions
For cable assembly, the contacts can be completely separated from their shell.
The stripped ends of the cable are soldered to the contact element.

Technical specifications
▸ Ø 13.5 mm
▸ Shell length 29.5 mm
▸ 8mm cable entry

High-end male RCA connector, with black ring.

Specifications
▸ Uniquely shaped contact crown to optimize contact
contact pressure and provide a tight connection
▸ 24K Gold Plated
▸ External shell in satin black aluminum
▸ Cable gland provided by two 1.5mm M4 hex socket screws
▸ Cable gland for cable Ø 4 – 9.5 mm

Additional features
Solder version: 2 diameter reducers to comfortably adapt to various cable diameters

assembly instructions
For cable assembly, the contacts can be completely separated from their shell.
The stripped ends of the cable are soldered to the contact element.

Technical specifications
▸ Ø 13.5 mm
▸ Shell length 30.5 mm
▸ Cable gland length 24 mm
▸ Cable entry Ø 4 – 9.5 mm

High-end male RCA connector, with red ring.

Specifications
▸ Uniquely shaped contact crown to optimize contact
contact pressure and provide a tight connection
▸ 24K Gold Plated
▸ External shell in satin black aluminum
▸ Cable gland provided by two 1.5mm M4 hex socket screws
▸ Cable gland for cable Ø 4 – 9.5 mm

Additional features
Solder version: 2 diameter reducers to comfortably adapt to various cable diameters

assembly instructions
For cable assembly, the contacts can be completely separated from their shell.
The stripped ends of the cable are soldered to the contact element.

Technical specifications
▸ Ø 13.5 mm
▸ Shell length 30.5 mm
▸ Cable gland length 24 mm
▸ Cable entry Ø 4 – 9.5 mm

Male RCA connector with insulating shell and black ring

Specifications
▸ 24K real gold plated
▸ One-piece grounded tubular metal shell,
completely closed for complete electrical shielding
▸ Short circuit protection thanks to an additional transparent insulating shell
▸ Solder connections
▸ Cable gland for cable up to 8 mm

assembly instructions
For cable assembly, the contacts can be completely separated from their shell.
The stripped ends of the cable are soldered to the contact element.

Technical specifications
▸ Ø 13.5 mm
▸ Shell length 29.5 mm
▸ 8mm cable entry

Male RCA connector with insulating shell and red ring

Specifications
▸ 24K real gold plated
▸ One-piece grounded tubular metal shell,
completely closed for complete electrical shielding
▸ Short circuit protection thanks to an additional transparent insulating shell
▸ Solder connections
▸ Cable gland for cable up to 8 mm

assembly instructions
For cable assembly, the contacts can be completely separated from their shell.
The stripped ends of the cable are soldered to the contact element.

Technical specifications
▸ Ø 13.5 mm
▸ Shell length 29.5 mm
▸ 8mm cable entry

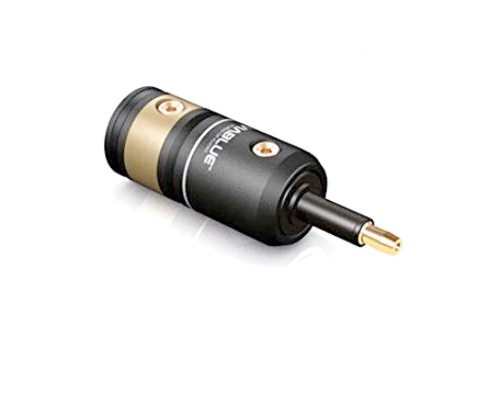

• Safe and stable guidance of the optical fibers through the contact pin • 24 carat real gold plated • Outer shell made of satin black aluminum • Strain relief for Ø 4 – 9.5 mm cable • Strain relief provided by one M4 hexagon socket screw 1.5 mm Additional features • 2 diameter reducers to comfortably fit various cable diameters • Ø 13.5 mm • Shell length 30.5 mm • Cable entry Ø 4 – 9.5 mm • Fiber optic stud Ø 1 mm.

Specifications
▸ Safe and stable guidance of the optical fibers through the contact pin
▸ 24K real gold plated
▸ External shell in satin black aluminum
▸ Cable gland for cable Ø 4 – 9.5 mm
▸ Strain relief provided by a 1.5mm M4 hex socket screw

Additional features
▸ 2 diameter reducers to conveniently fit various cable diameters

assembly instructions
The ends of the fiber optic cables are stripped and inserted into the connector core. The nucleus remains in the shell.
The cable gland screws are then tightened and the fiber optic cable is wet sanded and polished to finish.

Technical specifications
▸ Ø 13.5 mm
▸ Shell length 30.5 mm
▸ Cable entry Ø 4 – 9.5 mm
▸ Pin for optical fiber Ø 1 mm

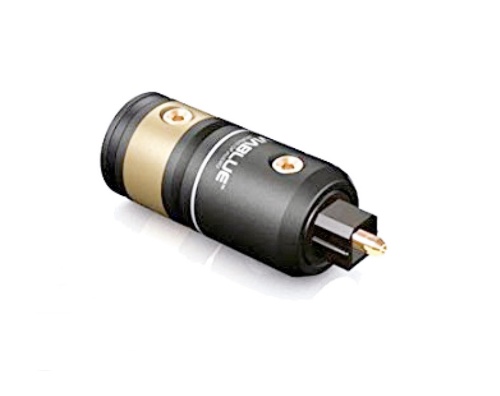

Safe and stable guidance of the optical fibers through the contact pin • 24 carat real gold plated • Outer shell made of satin black aluminum • Strain relief for cable Ø 4 – 9.5 mm • Strain relief provided by a 1 M4 hexagon socket screw .5 mm Additional features • 2 diameter reducers to comfortably fit various cable diameters • Ø 13.5 mm • Shell length 30.5 mm • Cable entry Ø 4 – 9.5 mm • Fiber optic stud Ø 1 mm.

Specifications
▸ Safe and stable guidance of the optical fibers through the contact pin
▸ 24K real gold plated
▸ External shell in satin black aluminum
▸ Cable gland for cable Ø 4 – 9.5 mm
▸ Strain relief provided by a 1.5mm M4 hex socket screw

Additional features
▸ 2 diameter reducers to conveniently fit various cable diameters

assembly instructions
The ends of the fiber optic cables are stripped and inserted into the connector core. The nucleus remains in the shell.
The cable gland screws are then tightened and the fiber optic cable is wet sanded and polished to finish.

Technical specifications
▸ Ø 13.5 mm
▸ Shell length 30.5 mm
▸ Cable entry Ø 4 – 9.5 mm
▸ Pin for optical fiber Ø 1 mm

High-end male XLR connector, with black ring

Specifications
▸ 24K real gold plated
▸ External shell in satin black aluminum
▸ Cable Ø 4 – 8 mm
▸ Cable gland provided by two 1.5mm M4 hex socket screws

Additional features
Anti-kink protection for solid cable routing

assembly instructions
For cable assembly, the contacts can be completely separated from their shell.
The stripped ends of the cable are soldered to the contact element.

Technical specifications
▸ Ø 18.8 mm
▸ Shell length 50 mm
▸ Cable gland length 24 mm
▸ Cable entry Ø 4 – 8 mm

High-end male XLR connector, with red ring

Specifications
▸ 24K real gold plated
▸ External shell in satin black aluminum
▸ Cable Ø 4 – 8 mm
▸ Cable gland provided by two 1.5mm M4 hex socket screws

Additional features
Anti-kink protection for solid cable routing

assembly instructions
For cable assembly, the contacts can be completely separated from their shell.
The stripped ends of the cable are soldered to the contact element.

Technical specifications
▸ Ø 18.8 mm
▸ Shell length 50 mm
▸ Cable gland length 24 mm
▸ Cable entry Ø 4 – 8 mm

High-end male XLR connector, with black ring

Specifications
▸ 24K real gold plated
▸ External shell in satin black aluminum
▸ Cable Ø 4 – 8 mm
▸ Cable gland provided by two 1.5mm M4 hex socket screws

Additional features
Anti-kink protection for solid cable routing

assembly instructions
For cable assembly, the contacts can be completely separated from their shell.
The stripped ends of the cable are soldered to the contact element.

Technical specifications
▸ Ø 18.8 mm
▸ Shell length 50 mm
▸ Cable gland length 24 mm
▸ Cable entry Ø 4 – 8 mm

High-end male XLR connector, with red ring

Specifications
▸ 24K real gold plated
▸ External shell in satin black aluminum
▸ Cable Ø 4 – 8 mm
▸ Cable gland provided by two 1.5mm M4 hex socket screws

Additional features
Anti-kink protection for solid cable routing

assembly instructions
For cable assembly, the contacts can be completely separated from their shell.
The stripped ends of the cable are soldered to the contact element.

Technical specifications
▸ Ø 18.8 mm
▸ Shell length 50 mm
▸ Cable gland length 24 mm
▸ Cable entry Ø 4 – 8 mm

Specifications
▸ 24K real gold plated contacts
▸ Unique VIABLUE™ Ultragrip surface
▸ Convenient assembly thanks to the guide plate and the second cable passage plate
▸ Guide trolley with double screw attachment for easy assembly of the shell
▸ Compact, fireproof, unbreakable

Technical specifications
▸ 24K real gold plated Cat6A RJ-45 contacts
▸ For crimping with RJ45 8P8C type crimping tool
▸ VIABLUE™ Ultragrip coating: scratch-resistant satin surface finish
▸ Secure support thanks to double screwing of the contact part with
two 1.5 mm hexagon socket screws
▸ Cable gland via 1.5mm M4 hexagon socket screws
▸ Guide plate for perfect alignment of the 8-wire internal conductors
▸ Insulation in fireproof polyamide material
▸ Cable gland for cable Ø 6-10 mm
▸ Total length 51.5 mm
▸ Width 14.4 mm
▸ Height 18.5 mm

Professional RCA plug with gold contacts, the body has a black soft-touch surface. They are included with 2 cable glands that allow the use of cables with diameters from 3.0mm to 7.3mm. Equipped with a special signal interruption device capable of preventing any noise when inserting the connector.

Technical characteristics

Electric
‣ Capacitance between contacts: ≤ 7pF
‣ Contact resistance: >10GmΩ
‣ Dielectric strength: 1.5 kVdc
‣ Insulation resistance: > 5 GΩ
‣ Rated current per contact: depends on mating connector A
‣Rated voltage: > 50V

Mechanical
‣ External cable diameter: 3.0 – 7.3 mm
‣ Lifecycles: > 2000
‣ Max wire size: 1.5 mm²
‣ Max wire size: 16AWG
‣ Wiring: Solder contacts

Material
‣ Contact plating: 5 µm Au over 5 µm Ni
‣ Contacts: Brass (CuZn39Pb3)
‣ Inserts: PBTP 20% GR
‣ Shell: Brass (CuZn39Pb3)
‣ Cable gland: Polyacetal (POM)

Environmental
‣ Flammability: UL94HB
‣ Compliance with standards: CEI 601-14
‣ Protection class: IP40
‣ Solderability: Complies with IEC 68-2-20
‣ Temperature range: -30°C to +80°C

Professional RCA plug with gold contacts, the body has a black soft-touch surface. They are included with 2 cable glands that allow the use of cables with diameters from 3.0mm to 7.3mm. Equipped with a special signal interruption device capable of preventing any noise when inserting the connector.

Technical characteristics

Electric
‣ Capacitance between contacts: ≤ 7pF
‣ Contact resistance: >10GmΩ
‣ Dielectric strength: 1.5 kVdc
‣ Insulation resistance: > 5 GΩ
‣ Rated current per contact: depends on mating connector A
‣Rated voltage: > 50V

Mechanical
‣ External cable diameter: 3.0 – 7.3 mm
‣ Lifecycles: > 2000
‣ Max wire size: 1.5 mm²
‣ Max wire size: 16AWG
‣ Wiring: Solder contacts

Material
‣ Contact plating: 5 µm Au over 5 µm Ni
‣ Contacts: Brass (CuZn39Pb3)
‣ Inserts: PBTP 20% GR
‣ Shell: Brass (CuZn39Pb3)
‣ Cable gland: Polyacetal (POM)

Environmental
‣ Flammability: UL94HB
‣ Compliance with standards: CEI 601-14
‣ Protection class: IP40
‣ Solderability: Complies with IEC 68-2-20
‣ Temperature range: -30°C to +80°C

Professional RCA plug with gold contacts, the body has a black soft-touch surface. They are included with 2 cable glands that allow the use of cables with diameters from 3.0mm to 7.3mm. Equipped with a special signal interruption device capable of preventing any noise when inserting the connector.

Technical characteristics

Electric
‣ Capacitance between contacts: ≤ 7pF
‣ Contact resistance: >10GmΩ
‣ Dielectric strength: 1.5 kVdc
‣ Insulation resistance: > 5 GΩ
‣ Rated current per contact: depends on mating connector A
‣Rated voltage: > 50V

Mechanical
‣ External cable diameter: 3.0 – 7.3 mm
‣ Lifecycles: > 2000
‣ Max wire size: 1.5 mm²
‣ Max wire size: 16AWG
‣ Wiring: Solder contacts

Material
‣ Contact plating: 5 µm Au over 5 µm Ni
‣ Contacts: Brass (CuZn39Pb3)
‣ Inserts: PBTP 20% GR
‣ Shell: Brass (CuZn39Pb3)
‣ Cable gland: Polyacetal (POM)

Environmental
‣ Flammability: UL94HB
‣ Compliance with standards: CEI 601-14
‣ Protection class: IP40
‣ Solderability: Complies with IEC 68-2-20
‣ Temperature range: -30°C to +80°C

Professional RCA plug with gold contacts, the body has a black soft-touch surface. They are included with 2 cable glands that allow the use of cables with diameters from 3.0mm to 7.3mm. Equipped with a special signal interruption device capable of preventing any noise when inserting the connector.

Technical characteristics

Electric
‣ Capacitance between contacts: ≤ 7pF
‣ Contact resistance: >10GmΩ
‣ Dielectric strength: 1.5 kVdc
‣ Insulation resistance: > 5 GΩ
‣ Rated current per contact: depends on mating connector A
‣Rated voltage: > 50V

Mechanical
‣ External cable diameter: 3.0 – 7.3 mm
‣ Lifecycles: > 2000
‣ Max wire size: 1.5 mm²
‣ Max wire size: 16AWG
‣ Wiring: Solder contacts

Material
‣ Contact plating: 5 µm Au over 5 µm Ni
‣ Contacts: Brass (CuZn39Pb3)
‣ Inserts: PBTP 20% GR
‣ Shell: Brass (CuZn39Pb3)
‣ Cable gland: Polyacetal (POM)

Environmental
‣ Flammability: UL94HB
‣ Compliance with standards: CEI 601-14
‣ Protection class: IP40
‣ Solderability: Complies with IEC 68-2-20
‣ Temperature range: -30°C to +80°C

3-pole male XLR connector, velour-chrome case with gold-plated contacts. Exclusive version of the standard XX series. Precious velor chrome plating. High temperature resistant insulating material

Technical characteristics

Electric
‣ Capacitance between contacts: ≤ 4pF
‣ Contact resistance: ≤ 3 mΩ
‣ Dielectric strength: 1.5 kVdc
‣ Insulation resistance: > 10 GΩ (initial)
‣ Rated current per contact: 16A
‣Rated voltage: < 50V

Mechanical
‣ External cable diameter: 3.5 – 8.0 mm
‣ Insertion force: ≤ 20 N
‣ Withdrawal force: ≤ 20 N
‣ Lifecycles: > 1000
‣ Max wire size: 2.5 mm²
‣ Max wire size: 14AWG
‣ Wiring: Solder contacts
‣ Closing device: Latch closure

Material
‣ Boot: Polyurethane
‣ Contact plating: Hard alloy of 0.2 µm Au over 2 µm Ni
‣ Contacts: Brass (CuZn35Pb2)
‣ Inserts: Polyphenylene Sulphide (PPS 40% GR)
‣ Locking element: Die-cast zinc (ZnAl4Cu1)
‣ Shell: Die-cast zinc (ZnAl4Cu1)
‣ Shell covering: Chrome Velvet
‣ Cable gland: Polyacetal (POM)

Environmental
‣ Flammability: UL94V-0
‣ Compliance with standards: CEI 61076-2-103
‣ Protection class: IP40
‣ Solderability: Complies with IEC 68-2-20
‣ Temperature range: -30°C to +80°C

3-pole male XLR connector, velour-chrome case with gold-plated contacts. Exclusive version of the standard XX series. Precious velor chrome plating. High temperature resistant insulating material

Technical characteristics

Electric
‣ Capacitance between contacts: ≤ 4pF
‣ Contact resistance: ≤ 3 mΩ
‣ Dielectric strength: 1.5 kVdc
‣ Insulation resistance: > 10 GΩ (initial)
‣ Rated current per contact: 16A
‣Rated voltage: < 50V

Mechanical
‣ External cable diameter: 3.5 – 8.0 mm
‣ Insertion force: ≤ 20 N
‣ Withdrawal force: ≤ 20 N
‣ Lifecycles: > 1000
‣ Max wire size: 2.5 mm²
‣ Max wire size: 14AWG
‣ Wiring: Solder contacts
‣ Closing device: Latch closure

Material
‣ Boot: Polyurethane
‣ Contact plating: Hard alloy of 0.2 µm Au over 2 µm Ni
‣ Contacts: Brass (CuZn35Pb2)
‣ Inserts: Polyphenylene Sulphide (PPS 40% GR)
‣ Locking element: Die-cast zinc (ZnAl4Cu1)
‣ Shell: Die-cast zinc (ZnAl4Cu1)
‣ Shell covering: Chrome Velvet
‣ Cable gland: Polyacetal (POM)

Environmental
‣ Flammability: UL94V-0
‣ Compliance with standards: CEI 61076-2-103
‣ Protection class: IP40
‣ Solderability: Complies with IEC 68-2-20
‣ Temperature range: -30°C to +80°C
