CREATE YOUR OWN BANTAM (TT) CABLE - Image 1
CREATE YOUR 16 CHANNEL TIE LINE
CREATE YOUR 16 CHANNEL TIE LINE
Back to products
CREATE YOUR OWN BALANCED SIGNAL Hi-Fi CABLE
CREATE YOUR OWN BALANCED SIGNAL Hi-Fi CABLE

Check the steps that will lead to having your own Handmade Bantam Cable. Each component has its own specific price depending on the type or brand. Once the steps have been completed, choose the quantity of the cable you just made and Add the product to the cart.

The average time we calculate to work, test and ship the custom cable you ordered is 3 days working hours from receipt of payment.

Select a balanced cable

  • *

    The result of the configuration is a balanced cable to be used with Patch Panels (TT)

  • Select the cable brand *

  • *

    Select the cable and in the appropriate box type the length directly or use the arrows.
    ▶︎ The unit of measurement is the meter ( m) and the length entered is intended from welding to welding

  • Select a Eurocable cable *

    lk02n3r-en
    + € 1,06
    EUROCABLE MIC/BALANCED CABLES - Image 1
    EUROCABLE MIC/BALANCED CABLES - LK04N7
    EUROCABLE MIC/BALANCED CABLES €2,46
    Back to products
    CABLOCUSTOM DIGITAL CABLES - CC1975 (75Ω)
    CABLOCUSTOM DIGITAL CABLES €1,88

    Seleziona un cavo mic/bilanciato: LK02N3R

    €1,06

    I NOSTRI BRAND

    Loading...
    ×
    € 1,06
    Eurocable

    Eurocable’s copper shielded wiring cable is extremely flexible and has been specifically designed for fixed installations or for wiring devices within a rack, where signal integrity over long distances is particularly important. The cable consists of two insulated twisted conductors and drain wire. All Eurocable wiring cables guarantee a clean and constant transmission of the audio signal to ensure a natural and realistic sound. Superior insulation due to bare copper spiral shielding.

    SPECS:
    Cable:
    Nom. O.D (mm): 3,7
    Weight Kg/100m: 2,20
    Operating temperature: -35°C/+65°C
    Jacket:
    Material: PVC
    Nominal Thickness: 0.65 mm
    Shield:
    Material: Bare copper spiral shield
    Coverage: 95%
    Conductor:
    Qty: 2
    Strand: 30 x 0.10 mm
    Area/AWG: 0.22 mm²/24
    Insul. O.D.: 1.10 mm
    Material: Bare copper polyethylene insulated.

  • Select a Cablocustom cable *

    cc1925-en
    + € 1,40
    CABLOCUSTOM MIC/BALANCED CABLES - Image 1
    CABLOCUSTOM MIC/BALANCED CABLES - CC1920
    CABLOCUSTOM MIC/BALANCED CABLES €2,50
    Back to products
    CANARE UNBALANCED INSTRUMENT CABLES - GS-6
    CANARE UNBALANCED INSTRUMENT CABLES €3,56

    Seleziona un cavo mic/bilanciato: CC1925

    €1,40

    I NOSTRI BRAND

    Loading...
    ×
    € 1,40
    Cablocustom

    Reduced diameter version of the CC1920, balanced cable/microphone with 2 conductors, each with 1.6 mm (11×0.19) copper cores), high density braided shielding for optimal protection from electromagnetic disturbances. PVC sheath with a diameter of 4.2 mm suitable for studio applications, especially internal rack wiring or for Audio Patch Cords.

    SPECIFICATIONS
    â–¸ Sec. of the conductors [mm2]: 2x 0,35
    â–¸ Isol. cond.: Compact medium density polyethylene (MDPE)
    â–¸ Insulation col.: White, blue
    â–¸ Diam. on isolation [mm]: 1.6 +/- 0.1
    ▸ Thickness isol. [mm]: ≤ 0.45
    â–¸ Form. conductor (N° x mm): 11×0.193
    ▸ Sheath: extra-flexible PVC, hardness: (57 ± 2) Sh-A
    â–¸ Diameter outer sheath [ mm ]: 4.2 +/- 0.15
    ▸ Thickness outer sheath [ mm ]: ≥ 0.45
    â–¸ Sheath color: Black
    ▸ Electrical resistance [Ω/Km]: ≤58.0
    ▸ Cap. cop.: ( 65 ± 8 ) pF/m
    ▸ Cond.-screen cap.: ( 135 ± 15 ) pF/m

  • Select a Canare cable *

    l-2e5-en
    + € 2,0
    CANARE MIC/BALANCED CABLES - Image 1
    CANARE MIC/BALANCED CABLES - L-2T2S
    CANARE MIC/BALANCED CABLES €2,40
    Back to products
    CANARE MULTICORE ANALOG CABLES - MR202-12AT
    CANARE MULTICORE ANALOG CABLES €13,20

    Seleziona un cavo mic/bilanciato: L-2E5

    €2,00

    I NOSTRI BRAND

    Loading...
    ×
    € 2,0
    Canare

    Miniature version of L-2T2S, 4.6mm diameter 2-conductor microphone cable for general purpose audio applications where small size and light weight are a consideration. The high-density braided copper shield and two internal conductors allow for maximum flexibility and reduced handling noise. A special compound PVC outer coating resists cracking even in sub-zero environments. Suitable for microphones, portable applications, audio patch cables, PA systems. • Braided copper shield • Flexible in extreme weather • Reduced handling noise • Reject EMI and RFI

    SPECS
    Nom. O.D: 4,6mm
    Weight Kg/100m: 3.0
    N. of Conductor: 2
    AWG: 26
    Twist Pitch (mm):18
    Shield Coverage (%): 97
    Electrical characteristics:
    Cond. D.C.R. (Ω/100m): 12.7
    Shield D.C.R. (Ω/100m): 2.2
    Nom. Cap. (pF/m): 63
    Nom. cap. Cond. Shield (pF/m): 117

    l-2e5at-en
    + € 1,45
    CANARE MIC/BALANCED CABLES - Image 1
    CANARE MIC/BALANCED CABLES - L-2B2AT
    CANARE MIC/BALANCED CABLES €0,88
    Back to products
    CANARE MIC/BALANCED CABLES - L-4E5C
    CANARE MIC/BALANCED CABLES €2,26

    Seleziona un cavo mic/bilanciato: L-2E5AT

    €1,45

    I NOSTRI BRAND

    Loading...
    ×
    € 1,45
    Canare

    Ideal for wiring inside the Racks. Aluminum foil shielding. Internal Drain Wire eliminates the troublesome part of the termination job. Contains Tetoron filter as additional reinforcement. Applications: Microphones, Recording studios, Permanent installations

    SPECS
    Nom. O.D: 5mm
    Weight Kg/100m: 3.3
    N. of Conductor: 2
    AWG: 23
    Twist Pitch (mm):30
    Electrical characteristics:
    Cond. D.C.R. (Ω/100m): 6,2
    Nom. Cap. (pF/m): 79
    Nom. cap. Cond. Shield (pF/m): 140

  • Select a Mogami cable *

    w2447-en
    + € 2,32
    MOGAMI MIC/BALANCED CABLE - Image 1
    MOGAMI MIC/BALANCED CABLE - W2549
    MOGAMI MIC/BALANCED CABLE €3,00
    Back to products
    MOGAMI UNBALANCED INSTRUMENT CABLES - W2524
    MOGAMI UNBALANCED INSTRUMENT CABLES €2,94

    Seleziona un cavo mic/bilanciato: W2447

    €2,32

    I NOSTRI BRAND

    Loading...
    ×
    € 2,32
    Mogami

    A durable and mechanically strong cable similar to W2552 but with two shields served separately. This produces a slightly higher level of capability than the W2552.

    SPECS:
    No. of Conductor: 2
    Conductor:
    Details: 12/0.12 A
    Size(mm²): 0.135mm² (#26 AWG)
    Insulation:
    Ov. Dia.(mm): 1.5Ø (0.059″)
    Material: LNXLPE (Low Noise Cross-Linked Polyethylene)
    Colors: Red / Clear
    Served Shield:
    Approx. 36/0.12A
    Jacket:
    Ov. Dia.(mm): 5.0Ø (0.197″)
    Material: Flexible PVC
    Colors: Black

    w2893-en
    + € 3,06
    MOGAMI MIC/BALANCED CABLE - Image 1
    MOGAMI MIC/BALANCED CABLE - W2534
    MOGAMI MIC/BALANCED CABLE €3,42
    Back to products
    MOGAMI MIC/BALANCED CABLE - W3172
    MOGAMI MIC/BALANCED CABLE €7,70

    Seleziona un cavo mic/bilanciato: W2893

    €3,06

    I NOSTRI BRAND

    Loading...
    ×
    € 3,06
    Mogami

    Miniature quad superflex microphone cable. Originally designed for BANTAM patch cables, this cable has become popular for its small size where a quad mic cable is required.

    SPECS:
    No. of Conductor: 4
    Conductor:
    Details: 130/0.08 OFC
    Size(mm²): 0.15mm² (#26 AWG)
    Insulation:
    Ov. Dia.(mm): 1.0Ø (0.039″)
    Material: XLCPE (Cross-Linked Polyethylene)
    Colors: Black/Red/Blue/Clear
    Served Shield:
    Approx. 73/0.12A
    Jacket:
    Ov. Dia.(mm): 4.8Ø (0.189″)
    Material: Flexible PVC
    Colors: Black

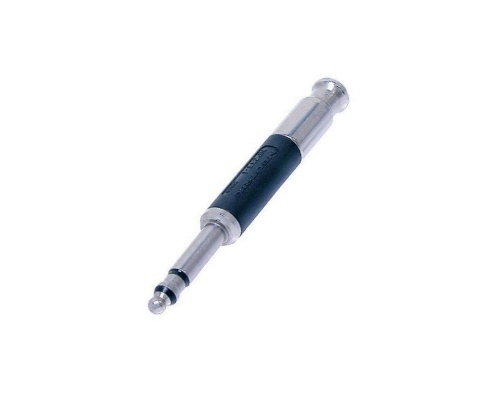

Side "A" - Select a "Bantam" connector

  • Select the brand *

  • Select a Neutrik *

Side "B" - Select a connector

  • Select a Neutrik *

    np3x-bag-en
    + € 6,05
    NEUTRIK TRS JACK PLUG 6,35mm - Image 1
    NEUTRIK TRS JACK PLUG 6,35mm - NP3X
    NEUTRIK TRS JACK PLUG 6,35mm €6,50
    Back to products
    NEUTRIK TRS JACK PLUG 6,35mm - NP3X-B
    NEUTRIK TRS JACK PLUG 6,35mm €7,10

    Seleziona un plug TRS: NP3X-BAG

    €6,05

    I NOSTRI BRAND

    Loading...
    ×
    € 6,05
    Neutrik

    Professional 6.35mm TRS plug. Nickel contacts, black shell

    Technical characteristics

    Electric
    ‣ Contact resistance: depends on the mating connector mΩ
    ‣ Dielectric strength: 1 kVdc
    ‣ Insulation resistance: > 2 GΩ (initial)
    ‣ Rated current per contact: depends on mating connector A
    ‣Rated voltage: > 50V

    Mechanical
    ‣ External cable diameter: 4.0 – 7.0 mm
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 1 mm²
    ‣ Max wire size: 18AWG
    ‣ Wiring: Solder contacts

    Material
    ‣ Bushing: Polyacetal (POM) + PU
    ‣ Contact plating: 2 µm Ni (Su)
    ‣ Contacts: Brass (CuZn39Pb3)
    ‣ Inserts: Polyamide (PA 6.6 30% GR)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell Plating: Black Chrome
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Standards compliance: IEC 60603-11/EIA RS-453
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -20°C to +65°C

    np3rx-bag-en
    + € 9,30
    NEUTRIK TRS JACK PLUG 6,35mm - Image 1
    NEUTRIK TRS JACK PLUG 6,35mm - NP3RX
    NEUTRIK TRS JACK PLUG 6,35mm €9,40
    Back to products
    NEUTRIK TRS JACK PLUG 6,35mm - NP3RX-B
    NEUTRIK TRS JACK PLUG 6,35mm €10,30

    Seleziona un plug TRS: NP3RX-BAG

    €9,30

    I NOSTRI BRAND

    Loading...
    ×
    € 9,30
    Neutrik

    Professional 6.35mm right angle TRS plug. Nickel contacts, black shell

    Technical characteristics

    Electric
    ‣ Contact resistance: depends on the mating connector mΩ
    ‣ Dielectric strength: 1 kVdc
    ‣ Insulation resistance: > 2 GΩ (initial)
    ‣ Rated current per contact: depends on mating connector A
    ‣Rated voltage: > 50V

    Mechanical
    ‣ External cable diameter: 4.0 – 7.0 mm
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 1 mm²
    ‣ Max wire size: 18AWG
    ‣ Wiring: Solder contacts

    Material
    ‣ Bushing: Polyacetal (POM) + PU
    ‣ Contact plating: 2 µm Ni (Su)
    ‣ Contacts: Brass (CuZn39Pb3)
    ‣ Inserts: Polyamide (PA 6.6 30% GR)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell Plating: Black Chrome
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Standards compliance: IEC 60603-11/EIA RS-453
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -20°C to +65°C

    nc3mxx-bag-en
    + € 4,60
    NEUTRIK XLR-M CONNECTORS FOR CABLE - Image 1
    NEUTRIK XLR-M CONNECTORS FOR CABLE - NC3MXX-B
    NEUTRIK XLR-M CONNECTORS FOR CABLE €5,60
    Back to products
    NEUTRIK XLR-M CONNECTORS FOR CABLE - NC3MXX
    NEUTRIK XLR-M CONNECTORS FOR CABLE €4,50

    Seleziona un conn. XLR-M: NC3MXX-BAG

    €4,60

    I NOSTRI BRAND

    Loading...
    ×
    € 4,60
    Neutrik

    3-pole male connector with black die-cast zinc shell and silver contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: 2 µm Ag
    ‣ Contacts: Brass (CuZn39Pb3)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

    nc3mrx-bag-en
    + € 9,50
    NEUTRIK XLR-M CONNECTORS FOR CABLE - Image 1
    NEUTRIK XLR-M CONNECTORS FOR CABLE - NC3MXX-HE
    NEUTRIK XLR-M CONNECTORS FOR CABLE €8,70
    Back to products
    NEUTRIK XLR-M CONNECTORS FOR CABLE - NC3MRX
    NEUTRIK XLR-M CONNECTORS FOR CABLE €9,60

    Seleziona un conn. XLR-M: NC3MRX-BAG

    €9,50

    I NOSTRI BRAND

    Loading...
    ×
    € 9,50
    Neutrik

    Right angle male connector with 3 poles. Black die-cast zinc shell and silver contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: 2 µm Ag
    ‣ Contacts: Bronze (CuSn8)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

     NC3MRX – technical drawing (en)
    nc3fxx-bag-d-en
    + € 5,40

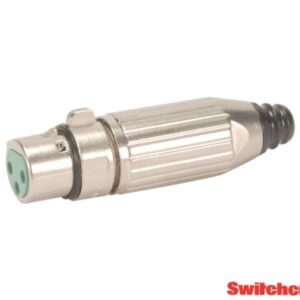

    NEUTRIK XLR-F CONNECTORS FOR CABLE - Image 1
    NEUTRIK XLR-F CONNECTORS FOR CABLE - NC3FXX
    NEUTRIK XLR-F CONNECTORS FOR CABLE €5,30
    Back to products
    NEUTRIK XLR-F CONNECTORS FOR CABLE - NC3FXX-B
    NEUTRIK XLR-F CONNECTORS FOR CABLE €6,90

    Seleziona un conn. XLR-F: NC3FXX-BAG

    €5,40

    I NOSTRI BRAND

    Loading...
    ×
    € 5,40
    Neutrik

    3-pole female connector with black die-cast zinc shell and silver-plated contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: 2 µm Ag
    ‣ Contacts: Bronze (CuSn8)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1) / Ck 67 (spring)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

    nc3frx-bag-en
    + € 10,70
    NEUTRIK XLR-F CONNECTORS FOR CABLE - Image 1
    NEUTRIK XLR-F CONNECTORS FOR CABLE - NC3FRX
    NEUTRIK XLR-F CONNECTORS FOR CABLE €11,40
    Back to products
    NEUTRIK XLR-F CONNECTORS FOR CABLE - NC3FRX-B
    NEUTRIK XLR-F CONNECTORS FOR CABLE €14,80

    Seleziona un conn. XLR-F: NC3FRX-BAG

    €10,70

    I NOSTRI BRAND

    Loading...
    ×
    € 10,70
    Neutrik

    Right angle female connector with 3 poles. Black die-cast zinc shell and silver contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: 2 µm Ag
    ‣ Contacts: Bronze (CuSn8)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1) / Ck 67 (spring)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

     NC3FRX – technical design (en)

  • Select a Neutrik *

    np3tt-p-au-b
    + € 9,80
    NEUTRIK TT PLUG "BANTAM" DA 4,4mm - Image 1
    NEUTRIK PLUG "BANTAM" 4.4mm - NP3TT-P-B
    NEUTRIK PLUG "BANTAM" 4.4mm €7,00
    Back to products
    NEUTRIK PLUG "BANTAM" 4.4mm - NP3TT-P-AU-B
    NEUTRIK PLUG "BANTAM" 4.4mm €9,80

    Seleziona un connettore Bantam: NP3TT-P-AU-B

    €9,80

    I NOSTRI BRAND

    Loading...
    ×
    € 9,80
    Neutrik

    Connettore da 4,4mm a 3 poli con cover nera e pressacavo a crimpare tipo HEX. Contatti dorati, punta e anello saldati, schermatura a crimpare. 9 colori opzionali possibili

    Caratteristiche tecniche

    Elettrico
    ‣ Resistenza di contatto: dipende dal connettore di accoppiamento mΩ
    ‣ Rigidità dielettrica: 1 kVcc
    ‣ Resistenza di isolamento: > 2 GΩ (iniziale)
    ‣ Corrente nominale per contatto: dipende dal connettore di accoppiamento A
    ‣Tensione nominale: > 50 V

    Meccanico
    ‣ Ø esterno del cavo: 4,0 – 4,8 mm
    ‣ Dimensione della crimpatura: 5,41 Crimpatura esagonale (schermatura)
    acc. IEC 60803 (designazione matrice D)
    ‣ Cicli di vita: > 1000
    ‣ Dimensioni max del filo: 0,25 mm²
    ‣ Dimensioni max del filo: 24 AWG
    ‣ Cablaggio: Contatti a saldare

    Materiale
    ‣ Placcatura dei contatti : 0,2 µm Au TRIBOR®
    ‣ Contatti: Bronzo (CuSn6) (punta)
    ‣ Inserti: Poliammide (PA 6.6 30% GR)
    ‣ Conchiglia: Ottone (CuZn39Pb3)
    ‣ Placcatura del guscio: Poliammide (6 30% GR) (nero)

    Ambientale
    ‣ Conformità agli standard: MIL-P-642/13
    ‣ Saldabilità: Conforme alla norma IEC 68-2-20
    ‣ Intervallo di temperatura: da -20°C a +65°C

    np3x-bag-en
    + € 6,05
    NEUTRIK TRS JACK PLUG 6,35mm - Image 1
    NEUTRIK TRS JACK PLUG 6,35mm - NP3X
    NEUTRIK TRS JACK PLUG 6,35mm €6,50
    Back to products
    NEUTRIK TRS JACK PLUG 6,35mm - NP3X-B
    NEUTRIK TRS JACK PLUG 6,35mm €7,10

    Seleziona un plug TRS: NP3X-BAG

    €6,05

    I NOSTRI BRAND

    Loading...
    ×
    € 6,05
    Neutrik

    Professional 6.35mm TRS plug. Nickel contacts, black shell

    Technical characteristics

    Electric
    ‣ Contact resistance: depends on the mating connector mΩ
    ‣ Dielectric strength: 1 kVdc
    ‣ Insulation resistance: > 2 GΩ (initial)
    ‣ Rated current per contact: depends on mating connector A
    ‣Rated voltage: > 50V

    Mechanical
    ‣ External cable diameter: 4.0 – 7.0 mm
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 1 mm²
    ‣ Max wire size: 18AWG
    ‣ Wiring: Solder contacts

    Material
    ‣ Bushing: Polyacetal (POM) + PU
    ‣ Contact plating: 2 µm Ni (Su)
    ‣ Contacts: Brass (CuZn39Pb3)
    ‣ Inserts: Polyamide (PA 6.6 30% GR)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell Plating: Black Chrome
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Standards compliance: IEC 60603-11/EIA RS-453
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -20°C to +65°C

    np3rx-bag-en
    + € 9,30
    NEUTRIK TRS JACK PLUG 6,35mm - Image 1
    NEUTRIK TRS JACK PLUG 6,35mm - NP3RX
    NEUTRIK TRS JACK PLUG 6,35mm €9,40
    Back to products
    NEUTRIK TRS JACK PLUG 6,35mm - NP3RX-B
    NEUTRIK TRS JACK PLUG 6,35mm €10,30

    Seleziona un plug TRS: NP3RX-BAG

    €9,30

    I NOSTRI BRAND

    Loading...
    ×
    € 9,30
    Neutrik

    Professional 6.35mm right angle TRS plug. Nickel contacts, black shell

    Technical characteristics

    Electric
    ‣ Contact resistance: depends on the mating connector mΩ
    ‣ Dielectric strength: 1 kVdc
    ‣ Insulation resistance: > 2 GΩ (initial)
    ‣ Rated current per contact: depends on mating connector A
    ‣Rated voltage: > 50V

    Mechanical
    ‣ External cable diameter: 4.0 – 7.0 mm
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 1 mm²
    ‣ Max wire size: 18AWG
    ‣ Wiring: Solder contacts

    Material
    ‣ Bushing: Polyacetal (POM) + PU
    ‣ Contact plating: 2 µm Ni (Su)
    ‣ Contacts: Brass (CuZn39Pb3)
    ‣ Inserts: Polyamide (PA 6.6 30% GR)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell Plating: Black Chrome
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Standards compliance: IEC 60603-11/EIA RS-453
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -20°C to +65°C

    nc3mxx-bag-en
    + € 4,60
    NEUTRIK XLR-M CONNECTORS FOR CABLE - Image 1
    NEUTRIK XLR-M CONNECTORS FOR CABLE - NC3MXX-B
    NEUTRIK XLR-M CONNECTORS FOR CABLE €5,60
    Back to products
    NEUTRIK XLR-M CONNECTORS FOR CABLE - NC3MXX
    NEUTRIK XLR-M CONNECTORS FOR CABLE €4,50

    Seleziona un conn. XLR-M: NC3MXX-BAG

    €4,60

    I NOSTRI BRAND

    Loading...
    ×
    € 4,60
    Neutrik

    3-pole male connector with black die-cast zinc shell and silver contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: 2 µm Ag
    ‣ Contacts: Brass (CuZn39Pb3)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

    nc3mrx-bag-en
    + € 9,50
    NEUTRIK XLR-M CONNECTORS FOR CABLE - Image 1
    NEUTRIK XLR-M CONNECTORS FOR CABLE - NC3MXX-HE
    NEUTRIK XLR-M CONNECTORS FOR CABLE €8,70
    Back to products
    NEUTRIK XLR-M CONNECTORS FOR CABLE - NC3MRX
    NEUTRIK XLR-M CONNECTORS FOR CABLE €9,60

    Seleziona un conn. XLR-M: NC3MRX-BAG

    €9,50

    I NOSTRI BRAND

    Loading...
    ×
    € 9,50
    Neutrik

    Right angle male connector with 3 poles. Black die-cast zinc shell and silver contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: 2 µm Ag
    ‣ Contacts: Bronze (CuSn8)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

     NC3MRX – technical drawing (en)
    nc3fxx-bag-d-en
    + € 5,40
    NEUTRIK XLR-F CONNECTORS FOR CABLE - Image 1
    NEUTRIK XLR-F CONNECTORS FOR CABLE - NC3FXX
    NEUTRIK XLR-F CONNECTORS FOR CABLE €5,30
    Back to products
    NEUTRIK XLR-F CONNECTORS FOR CABLE - NC3FXX-B
    NEUTRIK XLR-F CONNECTORS FOR CABLE €6,90

    Seleziona un conn. XLR-F: NC3FXX-BAG

    €5,40

    I NOSTRI BRAND

    Loading...
    ×
    € 5,40
    Neutrik

    3-pole female connector with black die-cast zinc shell and silver-plated contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: 2 µm Ag
    ‣ Contacts: Bronze (CuSn8)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1) / Ck 67 (spring)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

    nc3frx-bag-en
    + € 10,70
    NEUTRIK XLR-F CONNECTORS FOR CABLE - Image 1
    NEUTRIK XLR-F CONNECTORS FOR CABLE - NC3FRX
    NEUTRIK XLR-F CONNECTORS FOR CABLE €11,40
    Back to products
    NEUTRIK XLR-F CONNECTORS FOR CABLE - NC3FRX-B
    NEUTRIK XLR-F CONNECTORS FOR CABLE €14,80

    Seleziona un conn. XLR-F: NC3FRX-BAG

    €10,70

    I NOSTRI BRAND

    Loading...
    ×
    € 10,70
    Neutrik

    Right angle female connector with 3 poles. Black die-cast zinc shell and silver contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: 2 µm Ag
    ‣ Contacts: Bronze (CuSn8)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1) / Ck 67 (spring)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

     NC3FRX – technical design (en)

  • Select a Neutrik *

    np3tt-1-b
    + € 9
    NEUTRIK TT PLUG "BANTAM" DA 4,4mm - Image 1
    NEUTRIK PLUG "BANTAM" 4.4mm - NP3TT-P-B
    NEUTRIK PLUG "BANTAM" 4.4mm €7,00
    Back to products
    NEUTRIK PLUG "BANTAM" 4.4mm - NP3TT-P-AU-B
    NEUTRIK PLUG "BANTAM" 4.4mm €9,80

    Seleziona un connettore Bantam: NP3TT-1-B

    €9,00

    I NOSTRI BRAND

    Loading...
    ×
    € 9
    Neutrik

    Connettore da 4,4mm a 3 poli con cover nera e pressacavo a crimpare tipo HEX. Contatti in nickel, punta e anello saldati, schermatura a crimpare. 9 colori opzionali possibili

    Caratteristiche tecniche

    Elettrico
    ‣ Resistenza di contatto: dipende dal connettore di accoppiamento mΩ
    ‣ Rigidità dielettrica: 1 kVcc
    ‣ Resistenza di isolamento: > 2 GΩ (iniziale)
    ‣ Corrente nominale per contatto: dipende dal connettore di accoppiamento A
    ‣Tensione nominale: > 50 V

    Meccanico
    ‣ Ø esterno del cavo: 4,0 – 4,8 mm
    ‣ Dimensione della crimpatura: 5,41 Crimpatura esagonale (schermatura)
    ‣ Cicli di vita: > 1000
    ‣ Dimensioni max del filo: 0,25 mm²
    ‣ Dimensioni max del filo: 24 AWG
    ‣ Cablaggio: Contatti a saldare

    Materiale
    ‣ Boccola: Poliacetale (POM) + PU
    ‣ Placcatura dei contatti : 2 µm Ni (Su)
    ‣ Contatti: Bronzo (CuSn6) (punta)
    ‣ Conchiglia: Ottone (CuZn39Pb3)
    ‣ Isolamento: Poliammide (6 30% GR) (nero)

    Ambientale
    ‣ Conformità agli standard: MIL-P-642/13
    ‣ Saldabilità: Conforme alla norma IEC 68-2-20
    ‣ Intervallo di temperatura: da -20°C a +65°C

    np3x-b-en
    + € 7,10
    NEUTRIK TRS JACK PLUG 6,35mm - Image 1
    NEUTRIK TRS JACK PLUG 6,35mm - NP3X-BAG
    NEUTRIK TRS JACK PLUG 6,35mm €6,05
    Back to products
    NEUTRIK TRS JACK PLUG 6,35mm - NP3RX
    NEUTRIK TRS JACK PLUG 6,35mm €9,40

    Seleziona un plug TRS: NP3X-B

    €7,10

    I NOSTRI BRAND

    Loading...
    ×
    € 7,10
    Neutrik

    Professional 6.35mm TRS plug. Gold contacts, black shell

    Technical characteristics

    Electric
    ‣ Contact resistance: depends on the mating connector mΩ
    ‣ Dielectric strength: 1 kVdc
    ‣ Insulation resistance: > 2 GΩ (initial)
    ‣ Rated current per contact: depends on mating connector A
    ‣Rated voltage: > 50V

    Mechanical
    ‣ External cable diameter: 4.0 – 7.0 mm
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 1 mm²
    ‣ Max wire size: 18AWG
    ‣ Wiring: Solder contacts

    Material
    ‣ Bushing: Polyacetal (POM) + PU
    ‣ Contact plating: 0.2 µm Au
    ‣ Contacts: Brass (CuZn39Pb3)
    ‣ Inserts: Polyamide (PA 6.6 30% GR)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell plating: Nickel
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Standards compliance: IEC 60603-11/EIA RS-453
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -20°C to +65°C

    np3rx-b-en
    + € 10,30
    NEUTRIK TRS JACK PLUG 6,35mm - Image 1
    NEUTRIK TRS JACK PLUG 6,35mm - NP3RX-BAG
    NEUTRIK TRS JACK PLUG 6,35mm €9,30
    Back to products
    NEUTRIK TS JACK PLUG 6,35mm - NP2X
    NEUTRIK TS JACK PLUG 6,35mm €4,35

    Seleziona un plug TRS: NP3RX-B

    €10,30

    I NOSTRI BRAND

    Loading...
    ×
    € 10,30
    Neutrik

    Professional 6.35mm right angle TRS plug. Gold contacts, black shell

    Technical characteristics

    Electric
    ‣ Contact resistance: depends on the mating connector mΩ
    ‣ Dielectric strength: 1 kVdc
    ‣ Insulation resistance: > 2 GΩ (initial)
    ‣ Rated current per contact: depends on mating connector A
    ‣Rated voltage: > 50V

    Mechanical
    ‣ External cable diameter: 4.0 – 7.0 mm
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 1 mm²
    ‣ Max wire size: 18AWG
    ‣ Wiring: Solder contacts

    Material
    ‣ Bushing: Polyacetal (POM) + PU
    ‣ Contact plating: 0.2 µm Au
    ‣ Contacts: Brass (CuZn39Pb3)
    ‣ Inserts: Polyamide (PA 6.6 30% GR)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell plating: Nickel
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Standards compliance: IEC 60603-11/EIA RS-453
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -20°C to +65°C

    nc3mxx-b-en
    + € 5,60
    NEUTRIK XLR-M CONNECTORS FOR CABLE - Image 1
    AMPHENOL D-SUB MALE CONNECTORS (KIT)
    AMPHENOL D-SUB MALE CONNECTORS (KIT) Price range: €3,10 through €9,30
    Back to products
    NEUTRIK XLR-M CONNECTORS FOR CABLE - NC3MXX-BAG
    NEUTRIK XLR-M CONNECTORS FOR CABLE €4,60

    Seleziona un conn. XLR-M: NC3MXX-B

    €5,60

    I NOSTRI BRAND

    Loading...
    ×
    € 5,60
    Neutrik

    3-pole male connector with black die-cast zinc shell and gold-plated contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: Hard alloy of 0.2 µm Au over 2 µm Ni
    ‣ Contacts: Brass (CuZn39Pb3)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

    nc3mrx-b-en
    + € 12
    NEUTRIK XLR-M CONNECTORS FOR CABLE - Image 1
    NEUTRIK XLR-M CONNECTORS FOR CABLE - NC3MRX
    NEUTRIK XLR-M CONNECTORS FOR CABLE €9,60
    Back to products
    NEUTRIK XLR-M CONNECTORS FOR CABLE - NC3MXX-HD-D
    NEUTRIK XLR-M CONNECTORS FOR CABLE €10,60

    Seleziona un conn. XLR-M: NC3MRX-B

    €12,00

    I NOSTRI BRAND

    Loading...
    ×
    € 12
    Neutrik

    Right angle male connector with 3 poles. Black die-cast zinc shell and gold-plated contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: Hard alloy of 0.2 µm Au over 2 µm Ni
    ‣ Contacts: Bronze (CuSn8)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

     NC3MRX – technical drawing (en)
    nc3fxx-b-d-en
    + € 6,90
    NEUTRIK XLR-F CONNECTORS FOR CABLE - Image 1
    NEUTRIK XLR-F CONNECTORS FOR CABLE - NC3FXX-BAG
    NEUTRIK XLR-F CONNECTORS FOR CABLE €5,40
    Back to products
    NEUTRIK XLR-F CONNECTORS FOR CABLE - NC3FRX
    NEUTRIK XLR-F CONNECTORS FOR CABLE €11,40

    Seleziona un conn. XLR-F: NC3FXX-B

    €6,90

    I NOSTRI BRAND

    Loading...
    ×
    € 6,90
    Neutrik

    3-pole female connector with black die-cast zinc shell and gold-plated contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: Hard alloy of 0.2 µm Au over 2 µm Ni
    ‣ Contacts: Bronze (CuSn8)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1) / Ck 67 (spring)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

    nc3frx-b-en
    + € 14,80
    NEUTRIK XLR-F CONNECTORS FOR CABLE - Image 1
    NEUTRIK XLR-F CONNECTORS FOR CABLE - NC3FRX-BAG
    NEUTRIK XLR-F CONNECTORS FOR CABLE €10,70
    Back to products
    NEUTRIK XLR-F CONNECTORS FOR CABLE - NC3FXX-HE
    NEUTRIK XLR-F CONNECTORS FOR CABLE €10,90

    Seleziona un conn. XLR-F: NC3FRX-B

    €14,80

    I NOSTRI BRAND

    Loading...
    ×
    € 14,80
    Neutrik

    Right angle female connector with 3 poles. Black die-cast zinc shell and gold-plated contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: Hard alloy of 0.2 µm Au over 2 µm Ni
    ‣ Contacts: Bronze (CuSn8)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1) / Ck 67 (spring)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

     NC3FRX – technical design (en)

  • Select a Neutrik *

    np3x-b-en
    + € 7,10
    NEUTRIK TRS JACK PLUG 6,35mm - Image 1
    NEUTRIK TRS JACK PLUG 6,35mm - NP3X-BAG
    NEUTRIK TRS JACK PLUG 6,35mm €6,05
    Back to products
    NEUTRIK TRS JACK PLUG 6,35mm - NP3RX
    NEUTRIK TRS JACK PLUG 6,35mm €9,40

    Seleziona un plug TRS: NP3X-B

    €7,10

    I NOSTRI BRAND

    Loading...
    ×
    € 7,10
    Neutrik

    Professional 6.35mm TRS plug. Gold contacts, black shell

    Technical characteristics

    Electric
    ‣ Contact resistance: depends on the mating connector mΩ
    ‣ Dielectric strength: 1 kVdc
    ‣ Insulation resistance: > 2 GΩ (initial)
    ‣ Rated current per contact: depends on mating connector A
    ‣Rated voltage: > 50V

    Mechanical
    ‣ External cable diameter: 4.0 – 7.0 mm
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 1 mm²
    ‣ Max wire size: 18AWG
    ‣ Wiring: Solder contacts

    Material
    ‣ Bushing: Polyacetal (POM) + PU
    ‣ Contact plating: 0.2 µm Au
    ‣ Contacts: Brass (CuZn39Pb3)
    ‣ Inserts: Polyamide (PA 6.6 30% GR)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell plating: Nickel
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Standards compliance: IEC 60603-11/EIA RS-453
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -20°C to +65°C

    np3rx-b-en
    + € 10,30
    NEUTRIK TRS JACK PLUG 6,35mm - Image 1
    NEUTRIK TRS JACK PLUG 6,35mm - NP3RX-BAG
    NEUTRIK TRS JACK PLUG 6,35mm €9,30
    Back to products
    NEUTRIK TS JACK PLUG 6,35mm - NP2X
    NEUTRIK TS JACK PLUG 6,35mm €4,35

    Seleziona un plug TRS: NP3RX-B

    €10,30

    I NOSTRI BRAND

    Loading...
    ×
    € 10,30
    Neutrik

    Professional 6.35mm right angle TRS plug. Gold contacts, black shell

    Technical characteristics

    Electric
    ‣ Contact resistance: depends on the mating connector mΩ
    ‣ Dielectric strength: 1 kVdc
    ‣ Insulation resistance: > 2 GΩ (initial)
    ‣ Rated current per contact: depends on mating connector A
    ‣Rated voltage: > 50V

    Mechanical
    ‣ External cable diameter: 4.0 – 7.0 mm
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 1 mm²
    ‣ Max wire size: 18AWG
    ‣ Wiring: Solder contacts

    Material
    ‣ Bushing: Polyacetal (POM) + PU
    ‣ Contact plating: 0.2 µm Au
    ‣ Contacts: Brass (CuZn39Pb3)
    ‣ Inserts: Polyamide (PA 6.6 30% GR)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell plating: Nickel
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Standards compliance: IEC 60603-11/EIA RS-453
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -20°C to +65°C

    nc3mxx-b-en
    + € 5,60
    NEUTRIK XLR-M CONNECTORS FOR CABLE - Image 1
    AMPHENOL D-SUB MALE CONNECTORS (KIT)
    AMPHENOL D-SUB MALE CONNECTORS (KIT) Price range: €3,10 through €9,30
    Back to products
    NEUTRIK XLR-M CONNECTORS FOR CABLE - NC3MXX-BAG
    NEUTRIK XLR-M CONNECTORS FOR CABLE €4,60

    Seleziona un conn. XLR-M: NC3MXX-B

    €5,60

    I NOSTRI BRAND

    Loading...
    ×
    € 5,60
    Neutrik

    3-pole male connector with black die-cast zinc shell and gold-plated contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: Hard alloy of 0.2 µm Au over 2 µm Ni
    ‣ Contacts: Brass (CuZn39Pb3)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

    nc3mrx-b-en
    + € 12
    NEUTRIK XLR-M CONNECTORS FOR CABLE - Image 1
    NEUTRIK XLR-M CONNECTORS FOR CABLE - NC3MRX
    NEUTRIK XLR-M CONNECTORS FOR CABLE €9,60
    Back to products
    NEUTRIK XLR-M CONNECTORS FOR CABLE - NC3MXX-HD-D
    NEUTRIK XLR-M CONNECTORS FOR CABLE €10,60

    Seleziona un conn. XLR-M: NC3MRX-B

    €12,00

    I NOSTRI BRAND

    Loading...
    ×
    € 12
    Neutrik

    Right angle male connector with 3 poles. Black die-cast zinc shell and gold-plated contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: Hard alloy of 0.2 µm Au over 2 µm Ni
    ‣ Contacts: Bronze (CuSn8)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

     NC3MRX – technical drawing (en)
    nc3fxx-b-d-en
    + € 6,90
    NEUTRIK XLR-F CONNECTORS FOR CABLE - Image 1
    NEUTRIK XLR-F CONNECTORS FOR CABLE - NC3FXX-BAG
    NEUTRIK XLR-F CONNECTORS FOR CABLE €5,40
    Back to products
    NEUTRIK XLR-F CONNECTORS FOR CABLE - NC3FRX
    NEUTRIK XLR-F CONNECTORS FOR CABLE €11,40

    Seleziona un conn. XLR-F: NC3FXX-B

    €6,90

    I NOSTRI BRAND

    Loading...
    ×
    € 6,90
    Neutrik

    3-pole female connector with black die-cast zinc shell and gold-plated contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: Hard alloy of 0.2 µm Au over 2 µm Ni
    ‣ Contacts: Bronze (CuSn8)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1) / Ck 67 (spring)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

    nc3frx-b-en
    + € 14,80
    NEUTRIK XLR-F CONNECTORS FOR CABLE - Image 1
    NEUTRIK XLR-F CONNECTORS FOR CABLE - NC3FRX-BAG
    NEUTRIK XLR-F CONNECTORS FOR CABLE €10,70
    Back to products
    NEUTRIK XLR-F CONNECTORS FOR CABLE - NC3FXX-HE
    NEUTRIK XLR-F CONNECTORS FOR CABLE €10,90

    Seleziona un conn. XLR-F: NC3FRX-B

    €14,80

    I NOSTRI BRAND

    Loading...
    ×
    € 14,80
    Neutrik

    Right angle female connector with 3 poles. Black die-cast zinc shell and gold-plated contacts. It improves the integrity of the contact thanks also to the presence of the anti-tear. One-piece internally threaded shell for maximum strength.

    Technical characteristics

    Electric
    ‣ Capacitance between contacts: ≤ 4pF
    ‣ Contact resistance: ≤ 3 mΩ
    ‣ Dielectric strength: 1.5 kVdc
    ‣ Insulation resistance: > 10 GΩ (initial)
    ‣ Rated current per contact: 16A
    ‣Rated voltage: < 50V

    Mechanical
    ‣ External cable diameter: 3.5 – 8.0 mm
    ‣ Insertion force: ≤ 20 N
    ‣ Withdrawal force: ≤ 20 N
    ‣ Lifecycles: > 1000
    ‣ Max wire size: 2.5 mm²
    ‣ Max wire size: 14AWG
    ‣ Wiring: Solder contacts
    ‣ Closing device: Latch closure

    Material
    ‣ Boot: Polyurethane
    ‣ Contact plating: Hard alloy of 0.2 µm Au over 2 µm Ni
    ‣ Contacts: Bronze (CuSn8)
    ‣ Inserts: Polyamide (PA66)
    ‣ Locking element: Die-cast zinc (ZnAl4Cu1) / Ck 67 (spring)
    ‣ Shell: Die-cast zinc (ZnAl4Cu1)
    ‣ Clamshell: KTL black
    ‣ Cable gland: Polyacetal (POM)

    Environmental
    ‣ Flammability: UL94V-0
    ‣ Compliance with standards: CEI 61076-2-103
    ‣ Protection class: IP40
    ‣ Solderability: Complies with IEC 68-2-20
    ‣ Temperature range: -30°C to +80°C

     NC3FRX – technical design (en)

  • Do you want the colored connector cover (side A and B)? *

  • Select a color *

    1-brown
    + € 0
    COLORED CAPS (for accessories) - Image 1
    YELLOWTEC TABLE/WALL STANDS - CamArm (YT3920)
    YELLOWTEC TABLE/WALL STANDS €440,00
    Back to products
    CABLOCUSTOM MIC/BALANCED CABLES
    CABLOCUSTOM MIC/BALANCED CABLES Price range: €1,26 through €2,60

    Seleziona un colore: 1 – Brown

    €0,00

    I NOSTRI BRAND

    Loading...
    ×
    € 0
    2-red
    + € 0
    COLORED CAPS (for accessories) - Image 1
    YELLOWTEC TABLE/WALL STANDS - CamArm (YT3920)
    YELLOWTEC TABLE/WALL STANDS €440,00
    Back to products
    CABLOCUSTOM MIC/BALANCED CABLES
    CABLOCUSTOM MIC/BALANCED CABLES Price range: €1,26 through €2,60

    Seleziona un colore: 2 – Red

    €0,00

    I NOSTRI BRAND

    Loading...
    ×
    € 0
    3-orange
    + € 0
    COLORED CAPS (for accessories) - Image 1
    YELLOWTEC TABLE/WALL STANDS - CamArm (YT3920)
    YELLOWTEC TABLE/WALL STANDS €440,00
    Back to products
    CABLOCUSTOM MIC/BALANCED CABLES
    CABLOCUSTOM MIC/BALANCED CABLES Price range: €1,26 through €2,60

    Seleziona un colore: 3 – Orange

    €0,00

    I NOSTRI BRAND

    Loading...
    ×
    € 0
    4-yellow
    + € 0
    COLORED CAPS (for accessories) - Image 1
    YELLOWTEC TABLE/WALL STANDS - CamArm (YT3920)
    YELLOWTEC TABLE/WALL STANDS €440,00
    Back to products
    CABLOCUSTOM MIC/BALANCED CABLES
    CABLOCUSTOM MIC/BALANCED CABLES Price range: €1,26 through €2,60

    Seleziona un colore: 4 – Yellow

    €0,00

    I NOSTRI BRAND

    Loading...
    ×
    € 0
    5-green
    + € 0
    COLORED CAPS (for accessories) - Image 1
    YELLOWTEC TABLE/WALL STANDS - CamArm (YT3920)
    YELLOWTEC TABLE/WALL STANDS €440,00
    Back to products
    CABLOCUSTOM MIC/BALANCED CABLES
    CABLOCUSTOM MIC/BALANCED CABLES Price range: €1,26 through €2,60

    Seleziona un colore: 5 – Green

    €0,00

    I NOSTRI BRAND

    Loading...
    ×
    € 0
    6-blue
    + € 0
    COLORED CAPS (for accessories) - Image 1
    YELLOWTEC TABLE/WALL STANDS - CamArm (YT3920)
    YELLOWTEC TABLE/WALL STANDS €440,00
    Back to products
    CABLOCUSTOM MIC/BALANCED CABLES
    CABLOCUSTOM MIC/BALANCED CABLES Price range: €1,26 through €2,60

    Seleziona un colore: 6 – Blue

    €0,00

    I NOSTRI BRAND

    Loading...
    ×
    € 0
    7-purple
    + € 0
    COLORED CAPS (for accessories) - Image 1
    YELLOWTEC TABLE/WALL STANDS - CamArm (YT3920)
    YELLOWTEC TABLE/WALL STANDS €440,00
    Back to products
    CABLOCUSTOM MIC/BALANCED CABLES
    CABLOCUSTOM MIC/BALANCED CABLES Price range: €1,26 through €2,60

    Seleziona un colore: 7 – Purple

    €0,00

    I NOSTRI BRAND

    Loading...
    ×
    € 0
    8-grey
    + € 0
    COLORED CAPS (for accessories) - Image 1
    YELLOWTEC TABLE/WALL STANDS - CamArm (YT3920)
    YELLOWTEC TABLE/WALL STANDS €440,00
    Back to products
    CABLOCUSTOM MIC/BALANCED CABLES
    CABLOCUSTOM MIC/BALANCED CABLES Price range: €1,26 through €2,60

    Seleziona un colore: 8 – Grey

    €0,00

    I NOSTRI BRAND

    Loading...
    ×
    € 0
    9-white
    + € 0
    COLORED CAPS (for accessories) - Image 1
    YELLOWTEC TABLE/WALL STANDS - CamArm (YT3920)
    YELLOWTEC TABLE/WALL STANDS €440,00
    Back to products
    SWITCHCRAFT CONNECTORS WHILE STOCKS LAST - AAA3FZ
    SWITCHCRAFT CONNECTORS WHILE STOCKS LAST Original price was: €4,60.Current price is: €2,70.

    Seleziona un colore: 9 – White

    €0,00

    I NOSTRI BRAND

    Loading...
    ×
    € 0

    Based on the quantity of cables placed in the cart, select the desired cover color (ring for XLR and TRS) of each cable. N.B: The colors will still be divided according to the number of cables inserted.

  • *

    After selecting the connectors on both sides, your setup is finished.
    All our cables are hand assembled by an expert technician and are rigorously tested before being shipped. The price of the processing is calculated according to the time it requires, in fractions of an hour and includes labour, laboratory costs, various small parts (heat-shrinkable, tin, etc.) and after-sales service.

  • Notes (optional): *

    Max: 130 characters

Product total

Options total

Global sum

Can't find what you are looking for?
Categories: , , , , , , ,
More Information

From Cablocustom you can create various customizable products: analogue cables, digital cables, Split (Y) cables, power cables, Hi-Fi cables, analogue multicore cables, multicore cables with LK, multicore cables with Edac, digital multicore cables, Tie Line and Stage Box.

Spedizioni
Il Corriere Convenzionato con Proaudio Srl è Fedex/TNT con una previsione di consegna, per tutto il territorio nazionale, di 24 ore dalla data di spedizione, fatta eccezione per le seguenti regioni: Calabria, Sicilia,Sardegna,Venezia e isole minori dove la consegna è prevista in 48 ore. Una e-mail preventiva anticiperà la consegna. In caso di mancato recapito il cliente verrà informato tramite e-mail e comunque verrà effettuato un secondo tentativo il giorno seguente. Se anche in questo caso la consegna non andrà a buon fine, la merce ritornerà presso la sede TNT della propria zona e rimarra in deposito per 4gg (entro i quali l'acquirente potrà scegliere di recarsi personalmente presso la sede del corriere a ritirare la merce o richiedere un ulteriore consegna a pagamento ). La merce disponibile presso i nostri magazzini verrà spedita entro le 24 ore successive dal ricevimento dell'ordine e comunque non prima dell'effettiva ricezione del pagamento. Le spese di spedizione riportate al momento dell'ordine, coprono la sola consegna al piano terra, non ai piani superiori. Per esigenze diverse consigliamo di contattare il nostro servizio clienti [email protected]

You may also like…

CREATE YOUR OWN “MINI” BALANCED CABLE

, ,

CREATE YOUR OWN INSTRUMENT CABLE

, , ,

CREATE YOUR OWN MIC/BALANCED CABLE

, , ,

CREATE YOUR OWN POWER CABLE

, ,

    Related products

    CREATE YOUR DIGITAL CABLE WITH DB25

    , , ,

    CREATE YOUR OWN 2 CHANNEL MULTICORE CABLE

    , , ,

    CREATE YOUR OWN 2-CHANNEL MULTICORE DIGITAL CABLE

    ,

    CREATE YOUR OWN 4 CHANNEL MULTICORE CABLE

    , , ,

    CREATE YOUR OWN 8 CHANNEL MULTICORE CABLE

    , , ,

    CREATE YOUR OWN ANALOG CABLE WITH DB25

    , , , ,

    CREATE YOUR OWN Hi-Fi POWER CABLE

    , ,

    CREATE YOUR SPLIT CABLE (2Ch –< Ch1+Ch2) UNBALANCED

    , , ,

      I NOSTRI BRAND

      Loading...
