CREATE YOUR OWN POWER CABLE

2P+E 16A German – French standard flying plug. Produced in bi-material rubber, very resistant to shocks – IP44

Technical characteristics

▸ Voltage: 250Vac
▸ Current: 16A
▸ Protection rating: IP44
▸ Robustness level: IK07
▸ Color: Black
▸ Material: Bi-material rubber

2P+E 16A German – French standard flying socket. Produced in bi-material rubber, very resistant to shocks – IP44

Technical characteristics

▸ Voltage: 250Vac
▸ Current: 16A
▸ Protection rating: IP44
▸ Robustness level: IK07
▸ Color: Black
▸ Material: Bi-material rubber

Straight plug 2P+E, IP44/IK09, In= 16A, Vn=200÷250Vac, blue. Cable locking and locking without screws

Technical characteristics

▸ Brand: Legrand
▸ Reference standard: IEC 60309-1/2
▸ Voltage: 200-250Vac
▸ Current: 16A
▸ Poles: 2P+E
▸ Degree of protection: IP44/IK09
▸ Material: Tempra PRO

Straight portable socket outlet 2P+E, IP44/IK09, In= 16A, Vn=200÷250Vac, blue. Cable locking and locking without screws

Technical characteristics

▸ Brand: Legrand
▸ Reference standard: IEC 60309-1/2
▸ Voltage: 200-250Vac
▸ Current: 16A
▸ Poles: 2P+E
▸ Degree of protection: IP44/IK09
▸ Material: Tempra PRO

2P+E 16A German – French standard flying plug. Produced in bi-material rubber, very resistant to shocks – IP44

Technical characteristics

▸ Voltage: 250Vac
▸ Current: 16A
▸ Protection rating: IP44
▸ Robustness level: IK07
▸ Color: Black
▸ Material: Bi-material rubber

2P+E 16A German – French standard flying socket. Produced in bi-material rubber, very resistant to shocks – IP44

Technical characteristics

▸ Voltage: 250Vac
▸ Current: 16A
▸ Protection rating: IP44
▸ Robustness level: IK07
▸ Color: Black
▸ Material: Bi-material rubber

Three-pole flying plug. Capacity 10A, 250V. Screw connections with cable clamp, rubber cable gland. VDE-IEC320-CEE22 standards

Three-pole flying socket. Capacity 10A, 250V. Screw connections with cable clamp, rubber cable gland. VDE-IEC320-CEE22 standards

Three-pole flying plug. Capacity 16A, 250V. Standards: IMQ – VDE – Approval: CEE17 – Protection: IP44 – Poles: 2 + Earth

Three-pole flying socket. Capacity 16A, 250V. Standards: IMQ – VDE – Approval: CEE17 – Protection: IP44 – Poles: 2 + Earth

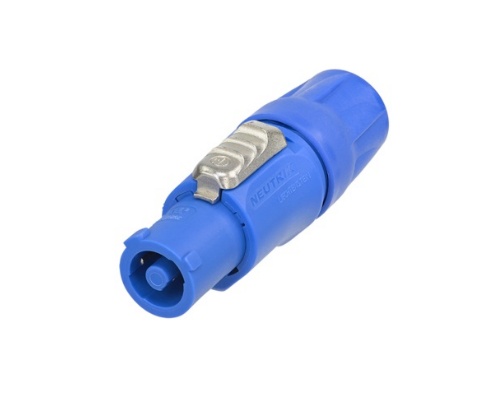

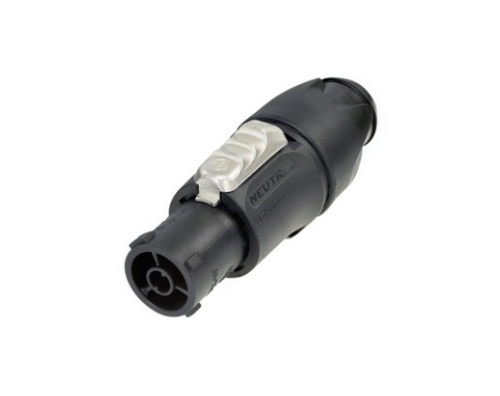

Female cable connector for 3-conductor electrical connections (neutral, phase, earth) with cable lock and screw terminals. It replaces the classic electrical “plug” of equipment with a safe and robust connection.
Attention, the Powercon is a connector without breaking capacity, i.e. it cannot be connected or disconnected under load or under voltage

Technical characteristics

Electric
‣ Contact resistance: ≤ 3 mΩ
‣ Contact resistance: 4 kVdc / 2.8 kVac
‣ Insulation resistance: > 0.1GΩ
‣ Number of electrical contacts: 2+PE
‣ European Rating: EN 61984:20 A 250 V AC
‣US Rating: UL 1977:20 A 250 V AC

Mechanical
‣ External cable diameter: 6.0 – 15.0 mm
‣ Lifecycles: > 1000
‣ Max wire size: 2.5 mm²
‣ Max wire size: 12AWG
‣ Closing device: Quick lock

Material
‣ Contact plating: 4 µm Ag
‣ Contacts: Bronze (CuSn6)
‣ Inserts: Polyamide (PA 6 30 % GR)
‣ Locking element: Die-cast zinc (ZnAl4Cu1)
‣ Shell: Polyamide (PA 6 30 % GR)
‣ Cable gland: Polyacetal (POM)

Environmental
‣ Flammability: UL94HB
‣ Protection class: IP20
‣ Temperature range: -30°C to +80°C

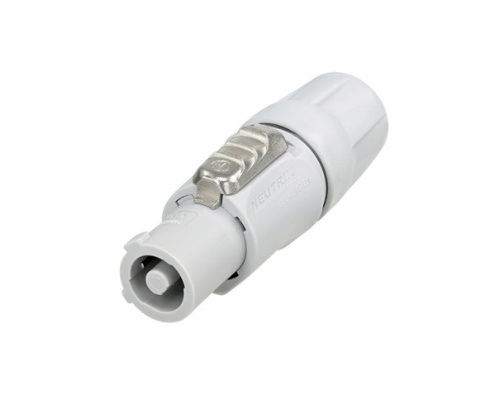

Female cable connector for 3-conductor electrical connections (neutral, phase, earth) with cable lock and screw terminals. It replaces the classic electrical “plug” of equipment with a safe and robust connection.
Attention, the Powercon is a connector without breaking capacity, i.e. it cannot be connected or disconnected under load or under voltage

Technical characteristics

Electric
‣ Contact resistance: ≤ 3 mΩ
‣ Contact resistance: 4 kVdc / 2.8 kVac
‣ Insulation resistance: > 0.1GΩ
‣ Number of electrical contacts: 2+PE
‣ European Rating: EN 61984:20 A 250 V AC
‣US Rating: UL 1977:20 A 250 V AC

Mechanical
‣ External cable diameter: 6.0 – 15.0 mm
‣ Lifecycles: > 1000
‣ Max wire size: 2.5 mm²
‣ Max wire size: 12AWG
‣ Closing device: Quick lock

Material
‣ Contact plating: 4 µm Ag
‣ Contacts: Bronze (CuSn6)
‣ Inserts: Polyamide (PA 6 30 % GR)
‣ Locking element: Die-cast zinc (ZnAl4Cu1)
‣ Shell: Polyamide (PA 6 30 % GR)
‣ Cable gland: Polyacetal (POM)

Environmental
‣ Flammability: UL94HB
‣ Protection class: IP20
‣ Temperature range: -30°C to +80°C

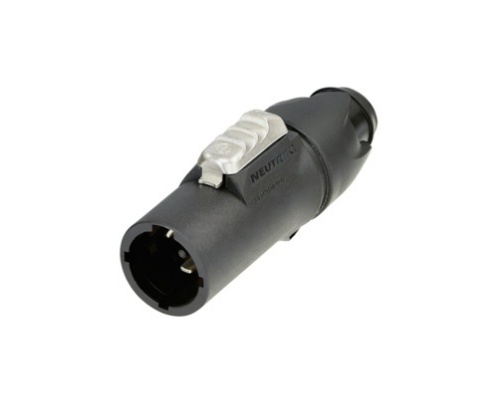

Male cable connector for 3-conductor electrical connections (neutral, phase, earth) with cable lock and screw terminals. It is a true 16A lockable mains connector for outdoor applications. It replaces the classic electrical “plug” of equipment with a safe and robust connection.
The TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or under voltage.

Technical characteristics

Electric
‣ Contact resistance: ≤ 2 mΩ
‣ Contact resistance: 4 kVdc / 2.8 kVac
‣ Insulation resistance: > 0.1GΩ
‣ Number of electrical contacts: 2+PE
‣ European Rating: EN 61984:20 A 250 V AC
‣US Rating: UL 1977:20 A 250 V AC

Mechanical
‣ External cable diameter: 6.0 – 12.0 mm
‣ Lifecycles: > 1000
‣ Max wire size: 1.0 – 2.5 mm²
‣ Max wire size: 12AWG
‣ Closing device: Quick lock

Material
‣ Contact plating: 2 µm Ag
‣ Contacts: CuNi1Si0.2
‣ Inserts: Polyamide (PA 6.6 30% GR)
‣ Locking element: Die-cast zinc (ZnAl4Cu1)
‣ Shell: Polyamide (PA 6.6 30% GR)
‣ Cable gland: Polyacetal (POM)

Environmental
‣ Flammability: UL94V-0
‣ Temperature range: -30°C to +80°C

Female cable connector for 3-conductor electrical connections (neutral, phase, earth) with cable lock and screw terminals. It is a true 16A lockable mains connector for outdoor applications. It replaces the classic electrical “plug” of equipment with a safe and robust connection.
The TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or under voltage.

Technical characteristics

Electric
‣ Contact resistance: ≤ 2 mΩ
‣ Contact resistance: 4 kVdc / 2.8 kVac
‣ Insulation resistance: > 0.1GΩ
‣ Number of electrical contacts: 2+PE
‣ European Rating: EN 61984:20 A 250 V AC
‣US Rating: UL 1977:20 A 250 V AC

Mechanical
‣ External cable diameter: 6.0 – 12.0 mm
‣ Lifecycles: > 1000
‣ Max wire size: 1.0 – 2.5 mm²
‣ Max wire size: 12AWG
‣ Closing device: Quick lock

Material
‣ Contact plating: 2 µm Ag
‣ Contacts: CuNi1Si0.2
‣ Inserts: Polyamide (PA 6.6 30% GR)
‣ Locking element: Die-cast zinc (ZnAl4Cu1)
‣ Shell: Polyamide (PA 6.6 30% GR)
‣ Cable gland: Polyacetal (POM)

Environmental
‣ Flammability: UL94V-0
‣ Temperature range: -30°C to +80°C

2P+E 16A German – French standard flying socket. Produced in bi-material rubber, very resistant to shocks – IP44

Technical characteristics

▸ Voltage: 250Vac
▸ Current: 16A
▸ Protection rating: IP44
▸ Robustness level: IK07
▸ Color: Black
▸ Material: Bi-material rubber

2P+E 16A German – French standard flying plug. Produced in bi-material rubber, very resistant to shocks – IP44

Technical characteristics

▸ Voltage: 250Vac
▸ Current: 16A
▸ Protection rating: IP44
▸ Robustness level: IK07
▸ Color: Black
▸ Material: Bi-material rubber

Female cable connector for 3-conductor electrical connections (neutral, phase, earth) with cable lock and screw terminals. It replaces the classic electrical “plug” of equipment with a safe and robust connection.
Attention, the Powercon is a connector without breaking capacity, i.e. it cannot be connected or disconnected under load or under voltage

Technical characteristics

Electric
‣ Contact resistance: ≤ 3 mΩ
‣ Contact resistance: 4 kVdc / 2.8 kVac
‣ Insulation resistance: > 0.1GΩ
‣ Number of electrical contacts: 2+PE
‣ European Rating: EN 61984:20 A 250 V AC
‣US Rating: UL 1977:20 A 250 V AC

Mechanical
‣ External cable diameter: 6.0 – 15.0 mm
‣ Lifecycles: > 1000
‣ Max wire size: 2.5 mm²
‣ Max wire size: 12AWG
‣ Closing device: Quick lock

Material
‣ Contact plating: 4 µm Ag
‣ Contacts: Bronze (CuSn6)
‣ Inserts: Polyamide (PA 6 30 % GR)
‣ Locking element: Die-cast zinc (ZnAl4Cu1)
‣ Shell: Polyamide (PA 6 30 % GR)
‣ Cable gland: Polyacetal (POM)

Environmental
‣ Flammability: UL94HB
‣ Protection class: IP20
‣ Temperature range: -30°C to +80°C

Female cable connector for 3-conductor electrical connections (neutral, phase, earth) with cable lock and screw terminals. It replaces the classic electrical “plug” of equipment with a safe and robust connection.
Attention, the Powercon is a connector without breaking capacity, i.e. it cannot be connected or disconnected under load or under voltage

Technical characteristics

Electric
‣ Contact resistance: ≤ 3 mΩ
‣ Contact resistance: 4 kVdc / 2.8 kVac
‣ Insulation resistance: > 0.1GΩ
‣ Number of electrical contacts: 2+PE
‣ European Rating: EN 61984:20 A 250 V AC
‣US Rating: UL 1977:20 A 250 V AC

Mechanical
‣ External cable diameter: 6.0 – 15.0 mm
‣ Lifecycles: > 1000
‣ Max wire size: 2.5 mm²
‣ Max wire size: 12AWG
‣ Closing device: Quick lock

Material
‣ Contact plating: 4 µm Ag
‣ Contacts: Bronze (CuSn6)
‣ Inserts: Polyamide (PA 6 30 % GR)
‣ Locking element: Die-cast zinc (ZnAl4Cu1)
‣ Shell: Polyamide (PA 6 30 % GR)
‣ Cable gland: Polyacetal (POM)

Environmental
‣ Flammability: UL94HB
‣ Protection class: IP20
‣ Temperature range: -30°C to +80°C

Female cable connector for 3-conductor electrical connections (neutral, phase, earth) with cable lock and screw terminals. It is a true 16A lockable mains connector for outdoor applications. It replaces the classic electrical “plug” of equipment with a safe and robust connection.
The TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or under voltage.

Technical characteristics

Electric
‣ Contact resistance: ≤ 2 mΩ
‣ Contact resistance: 4 kVdc / 2.8 kVac
‣ Insulation resistance: > 0.1GΩ
‣ Number of electrical contacts: 2+PE
‣ European Rating: EN 61984:20 A 250 V AC
‣US Rating: UL 1977:20 A 250 V AC

Mechanical
‣ External cable diameter: 6.0 – 12.0 mm
‣ Lifecycles: > 1000
‣ Max wire size: 1.0 – 2.5 mm²
‣ Max wire size: 12AWG
‣ Closing device: Quick lock

Material
‣ Contact plating: 2 µm Ag
‣ Contacts: CuNi1Si0.2
‣ Inserts: Polyamide (PA 6.6 30% GR)
‣ Locking element: Die-cast zinc (ZnAl4Cu1)
‣ Shell: Polyamide (PA 6.6 30% GR)
‣ Cable gland: Polyacetal (POM)

Environmental
‣ Flammability: UL94V-0
‣ Temperature range: -30°C to +80°C

Male cable connector for 3-conductor electrical connections (neutral, phase, earth) with cable lock and screw terminals. It is a true 16A lockable mains connector for outdoor applications. It replaces the classic electrical “plug” of equipment with a safe and robust connection.
The TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or under voltage.

Technical characteristics

Electric
‣ Contact resistance: ≤ 2 mΩ
‣ Contact resistance: 4 kVdc / 2.8 kVac
‣ Insulation resistance: > 0.1GΩ
‣ Number of electrical contacts: 2+PE
‣ European Rating: EN 61984:20 A 250 V AC
‣US Rating: UL 1977:20 A 250 V AC

Mechanical
‣ External cable diameter: 6.0 – 12.0 mm
‣ Lifecycles: > 1000
‣ Max wire size: 1.0 – 2.5 mm²
‣ Max wire size: 12AWG
‣ Closing device: Quick lock

Material
‣ Contact plating: 2 µm Ag
‣ Contacts: CuNi1Si0.2
‣ Inserts: Polyamide (PA 6.6 30% GR)
‣ Locking element: Die-cast zinc (ZnAl4Cu1)
‣ Shell: Polyamide (PA 6.6 30% GR)
‣ Cable gland: Polyacetal (POM)

Environmental
‣ Flammability: UL94V-0
‣ Temperature range: -30°C to +80°C

Three-pole flying socket. Capacity 10A, 250V. Screw connections with cable clamp, rubber cable gland. VDE-IEC320-CEE22 standards

Three-pole flying plug. Capacity 10A, 250V. Screw connections with cable clamp, rubber cable gland. VDE-IEC320-CEE22 standards
